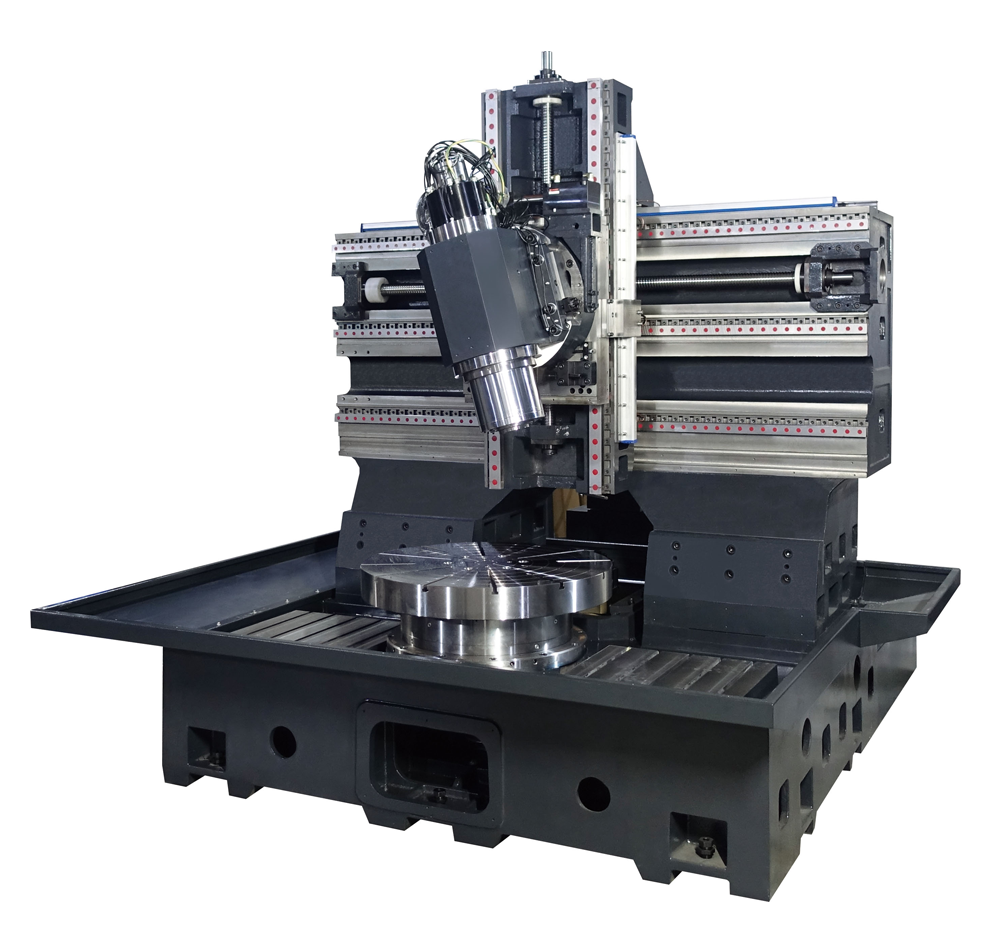

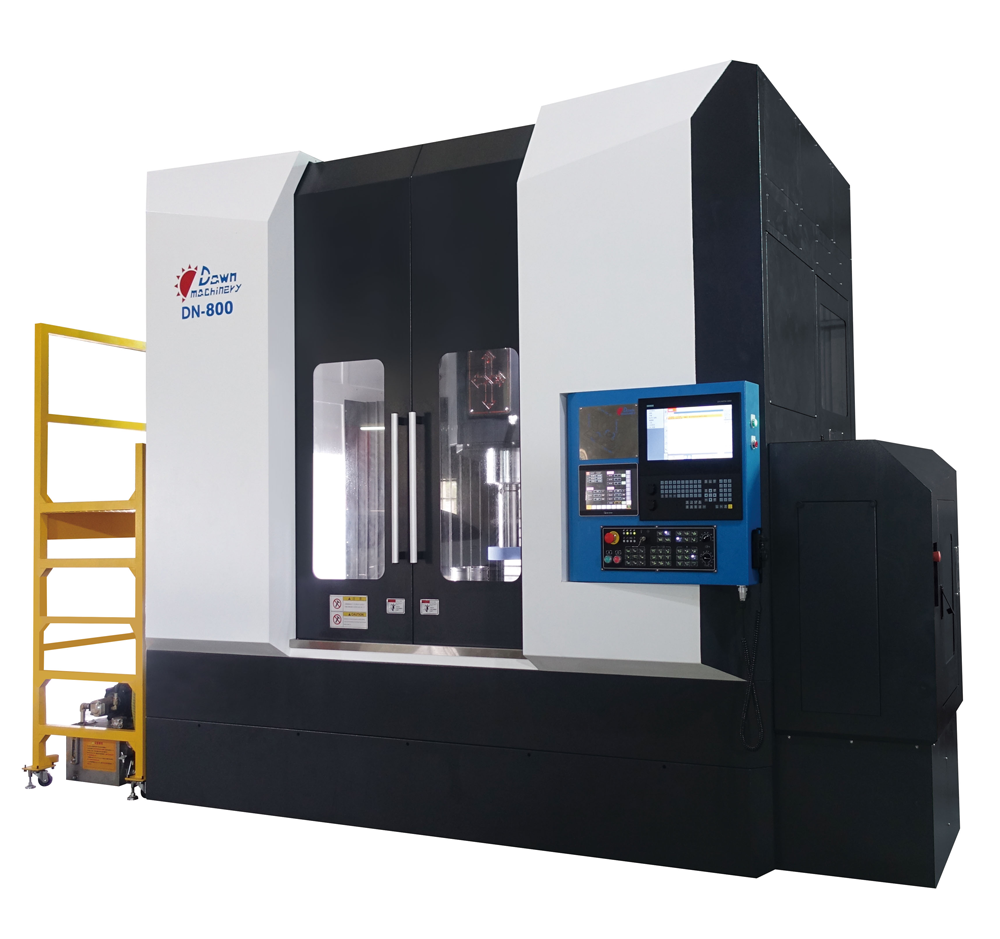

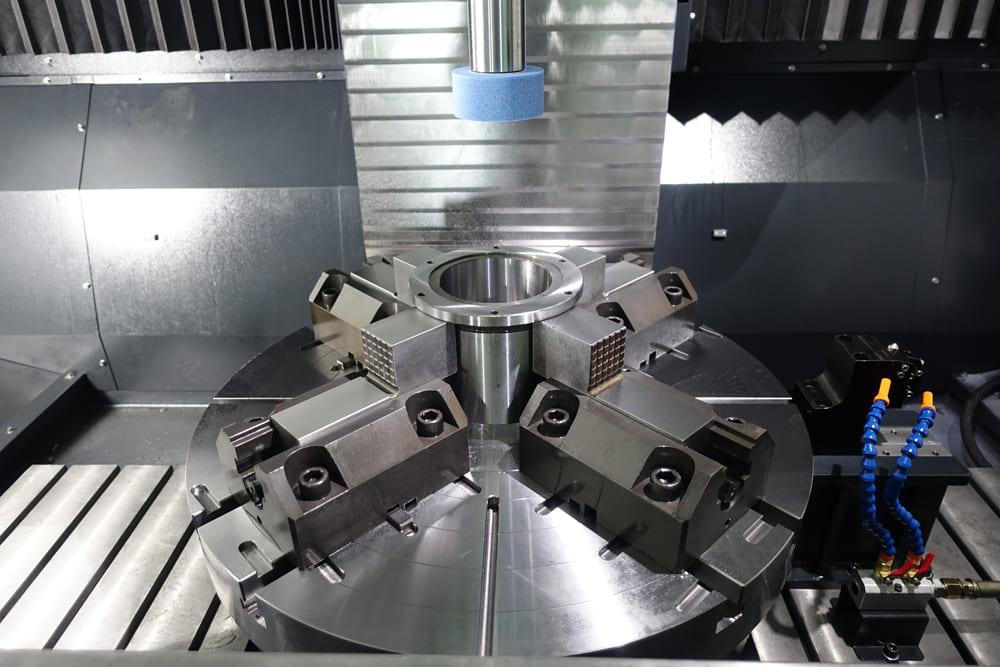

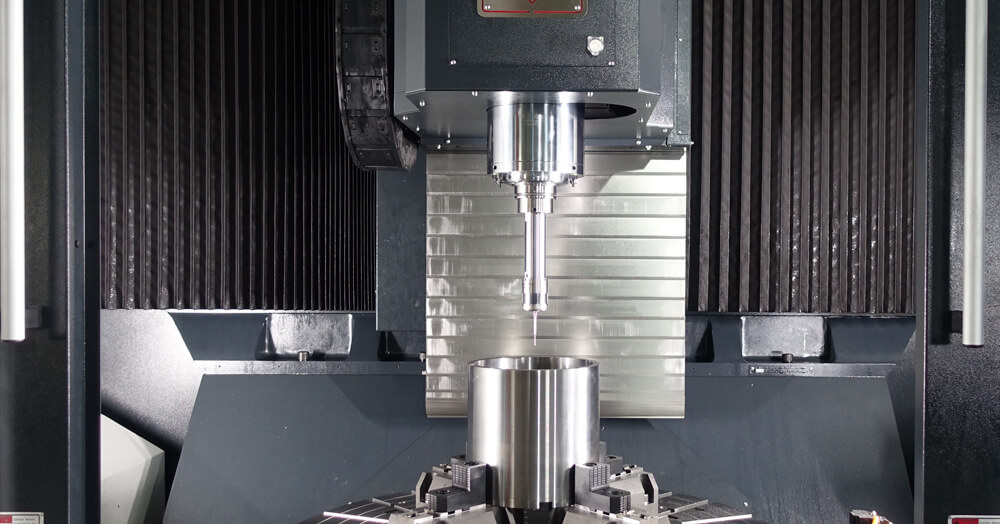

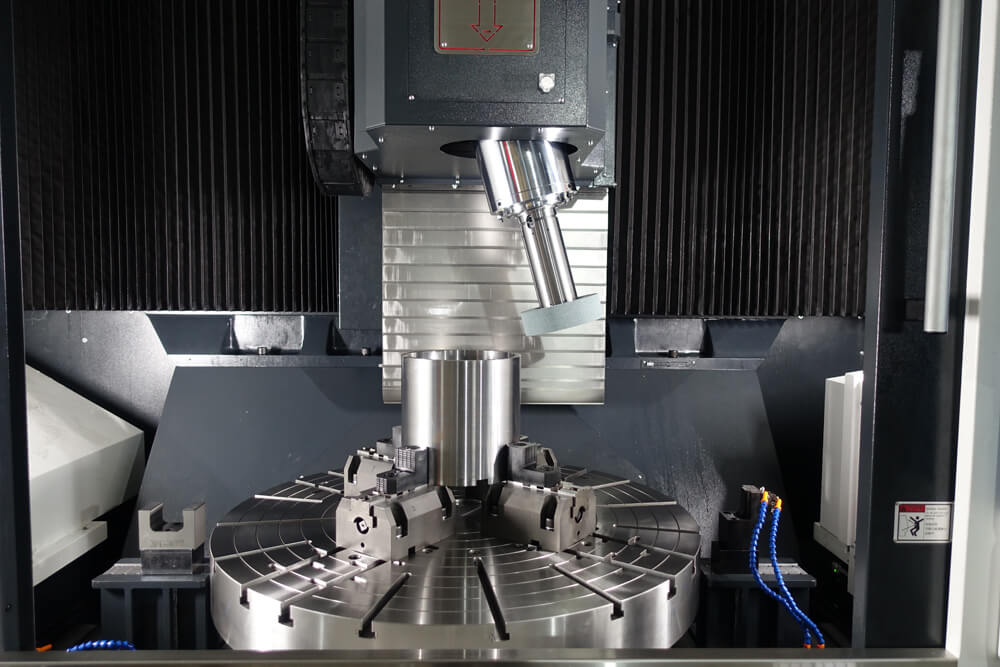

Vertical Cylindrical Grinder
Model | DN-Series
The vertical design provides high precision, high stability,small machine footprint, and heavy work pieces are not impacted by gravity when clamping.
Inquiry ProductFeature

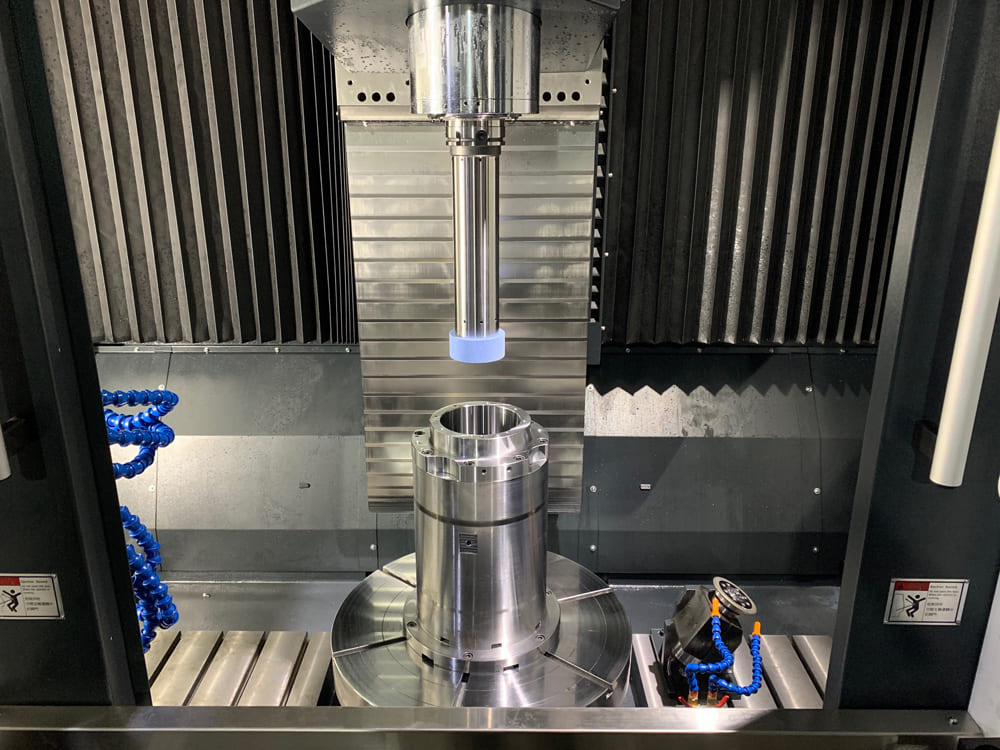

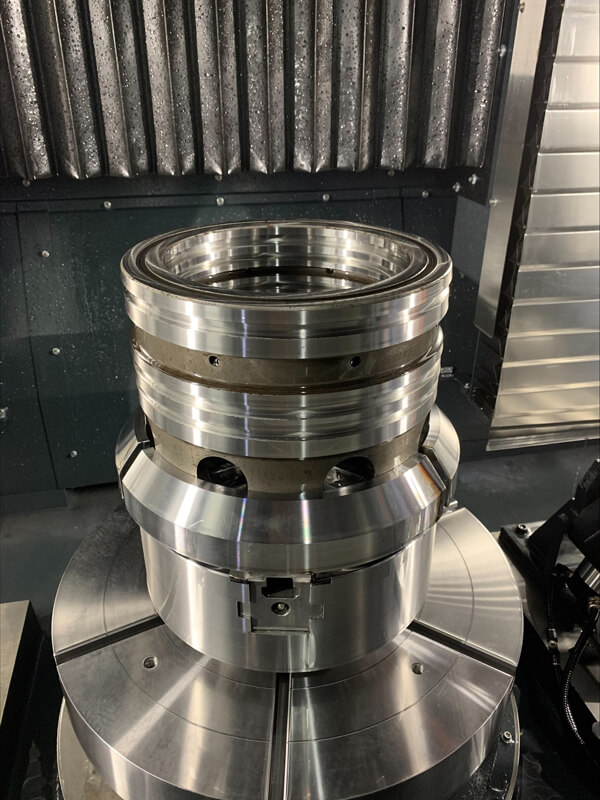

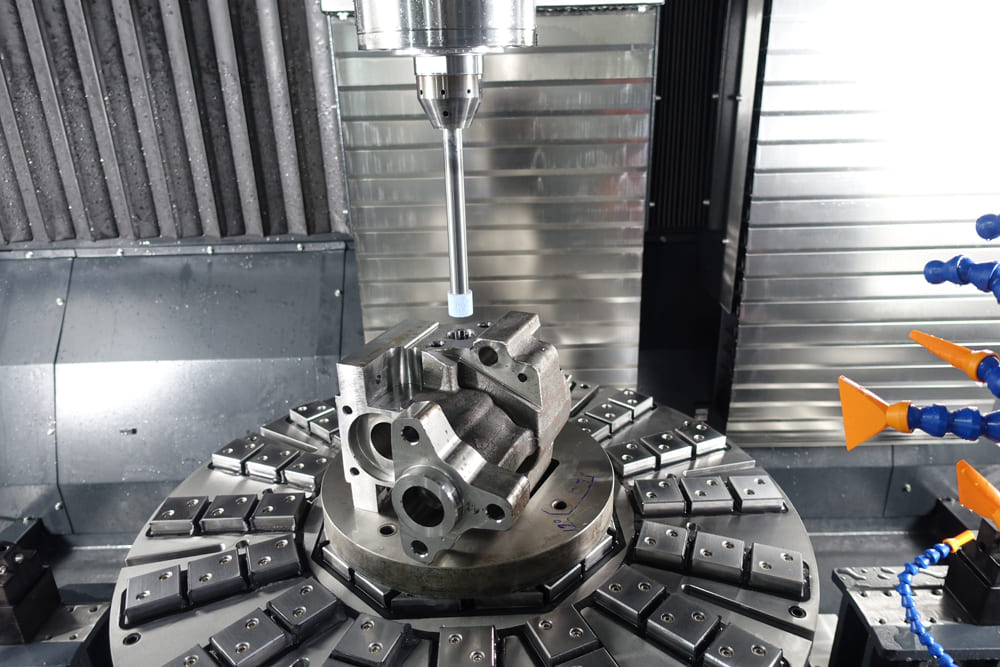

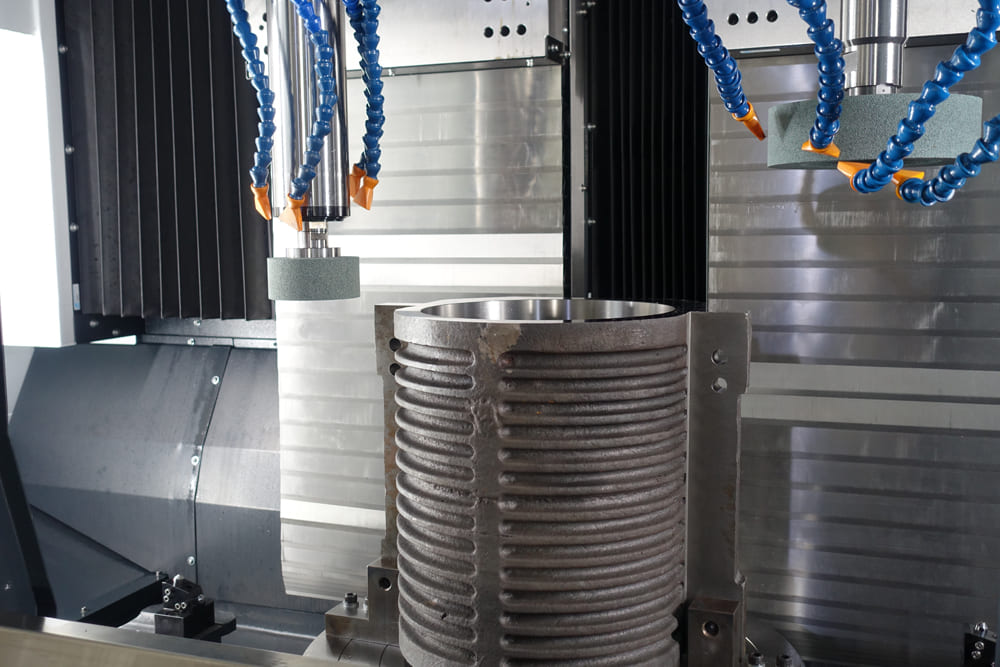

- Suitable for grinding inside and outside diameters as well as end surfaces of heavy or non-circular work pieces.

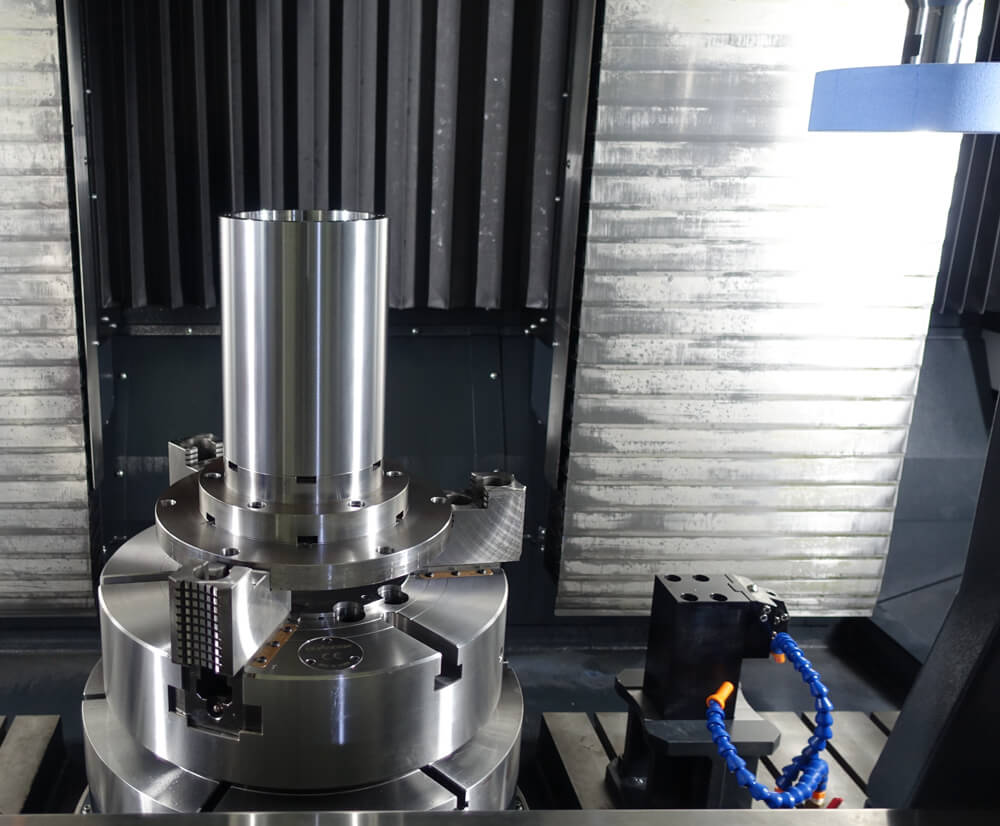

- Heavier work pieces can be loaded more easily by overhead hoist.
- Double-column structure provides better machine stiffness.
- Fully enclosed covers and an oil-mist reclaiming device prevent leakage of grinding oil and mist.

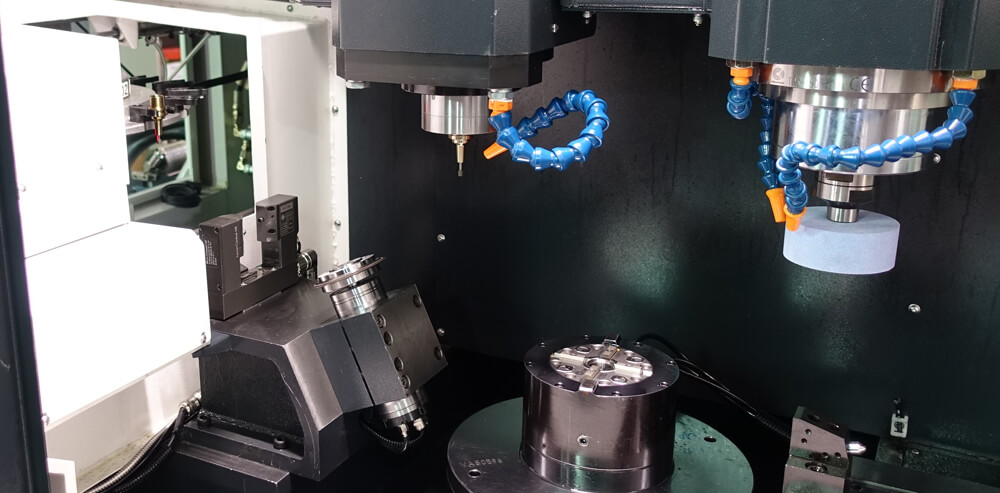

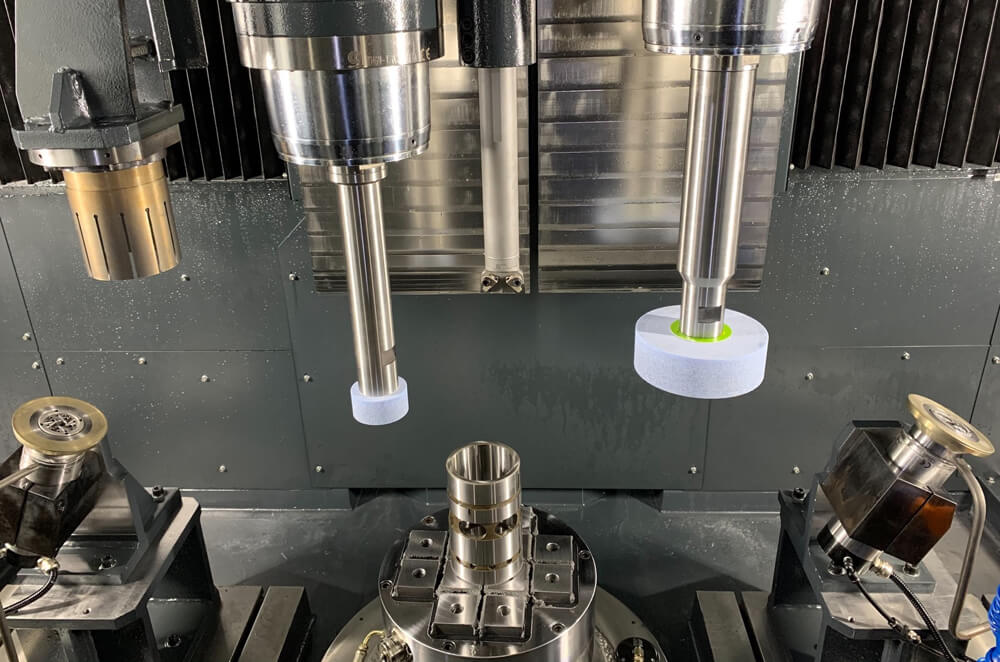

- Options of single- or double-spindle, with or without tool changer.

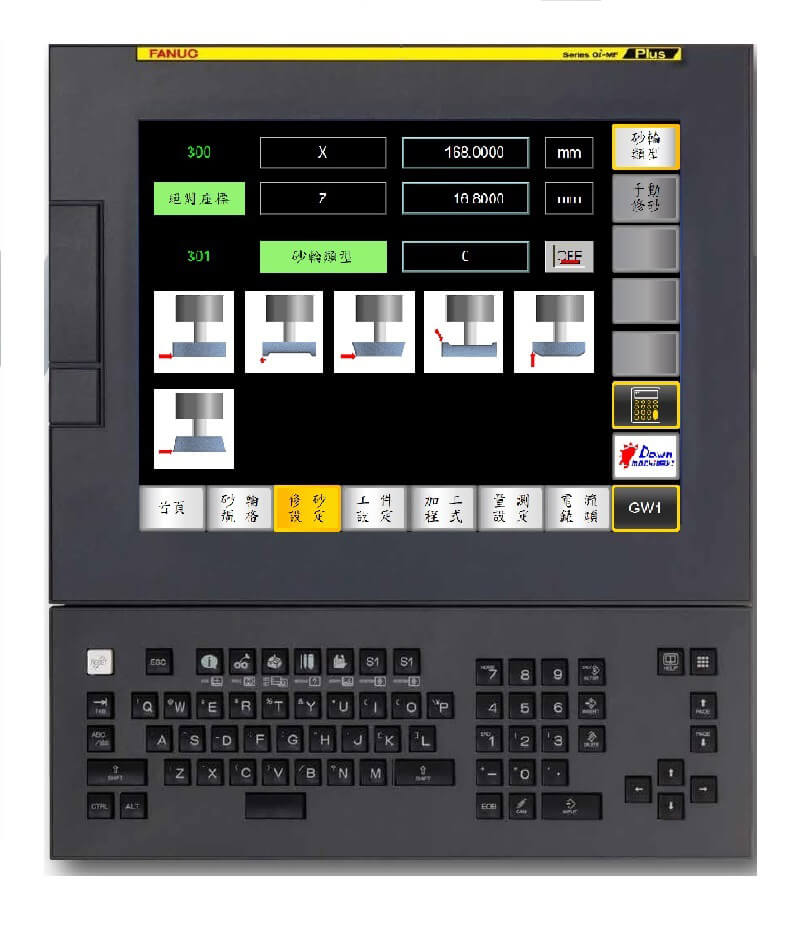

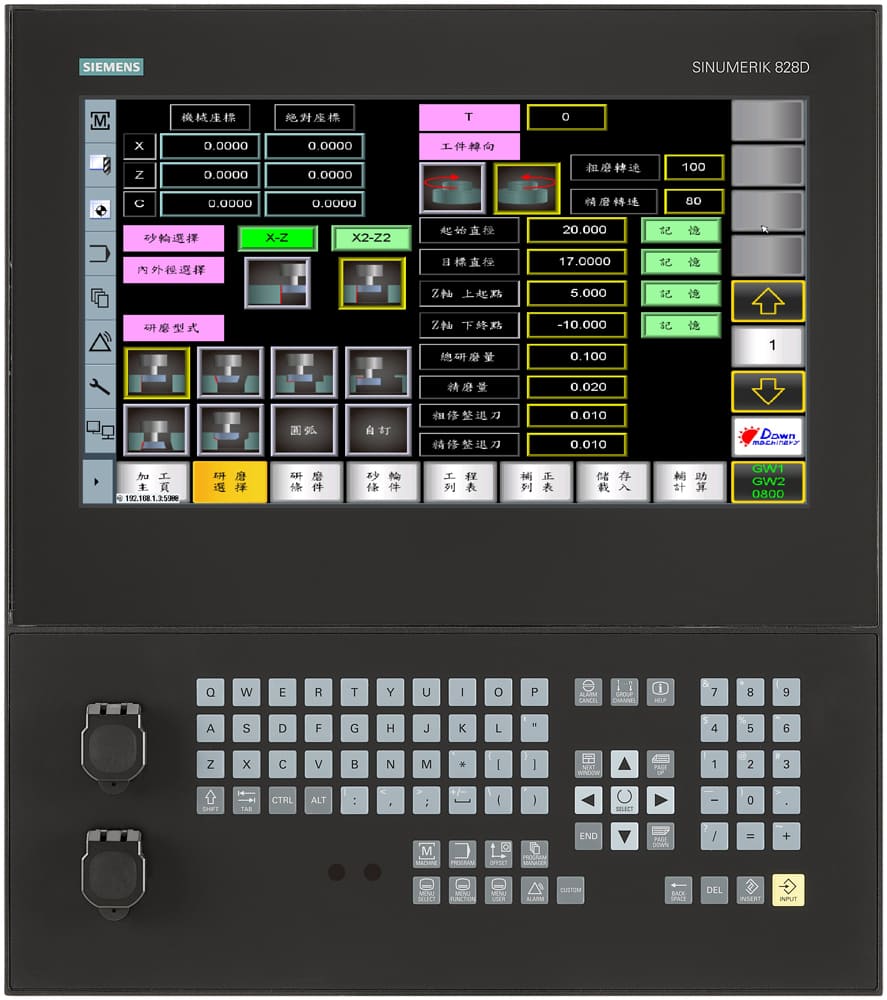

- Fanuc controller plus a 10" man-machine touch panel.
- Conversational programming makes control operation and program creation easier.

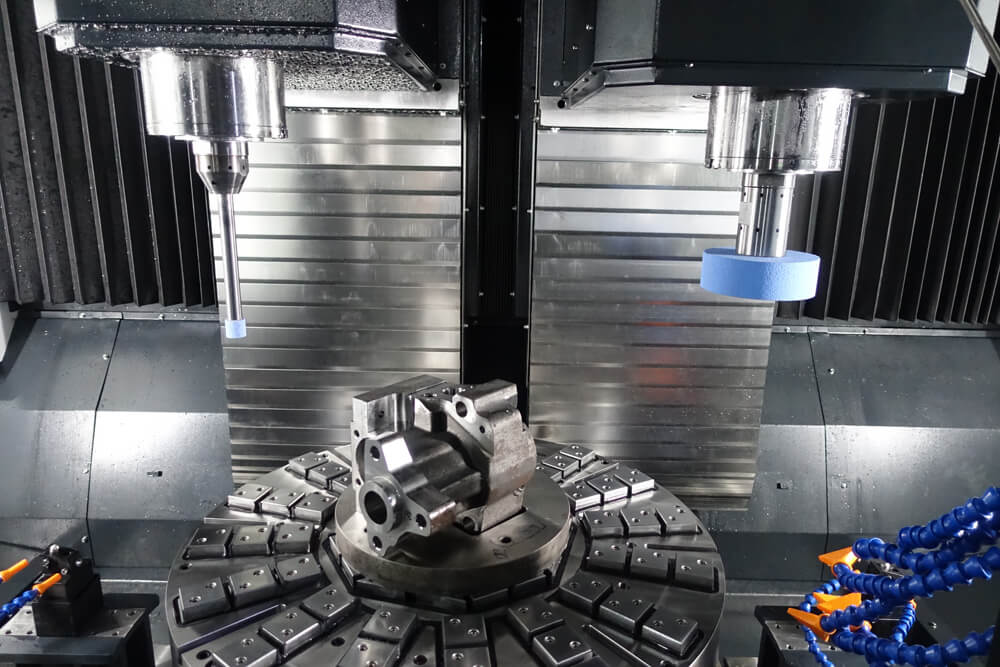

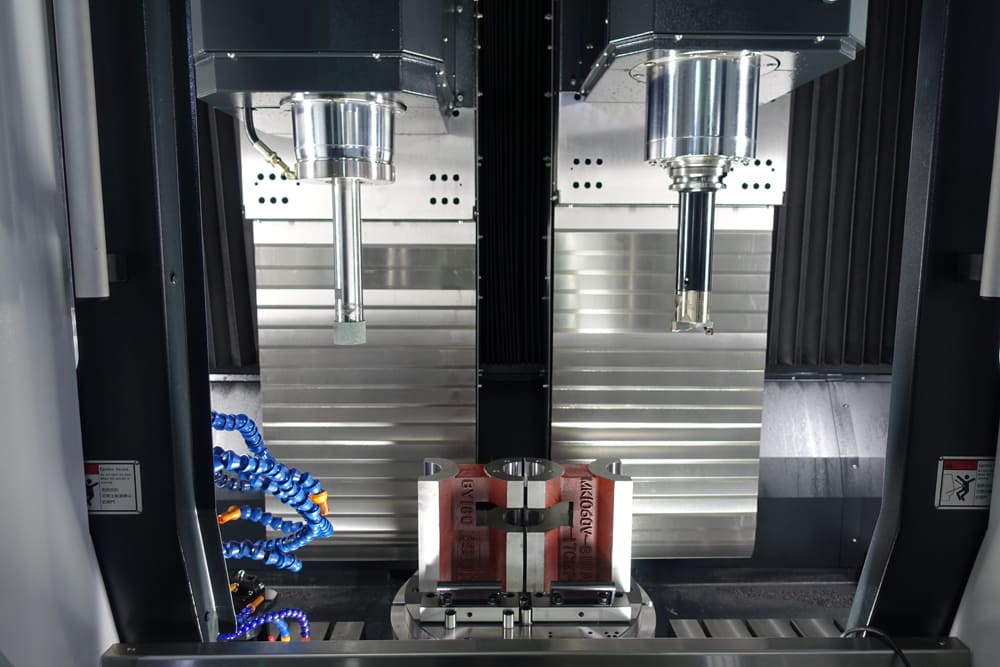

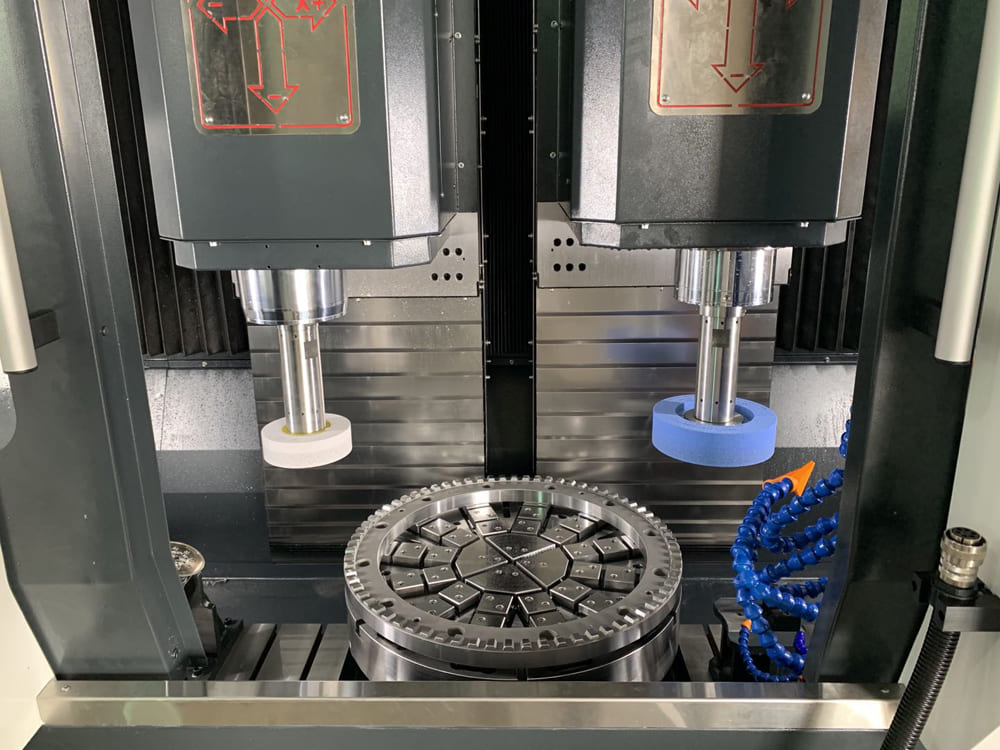

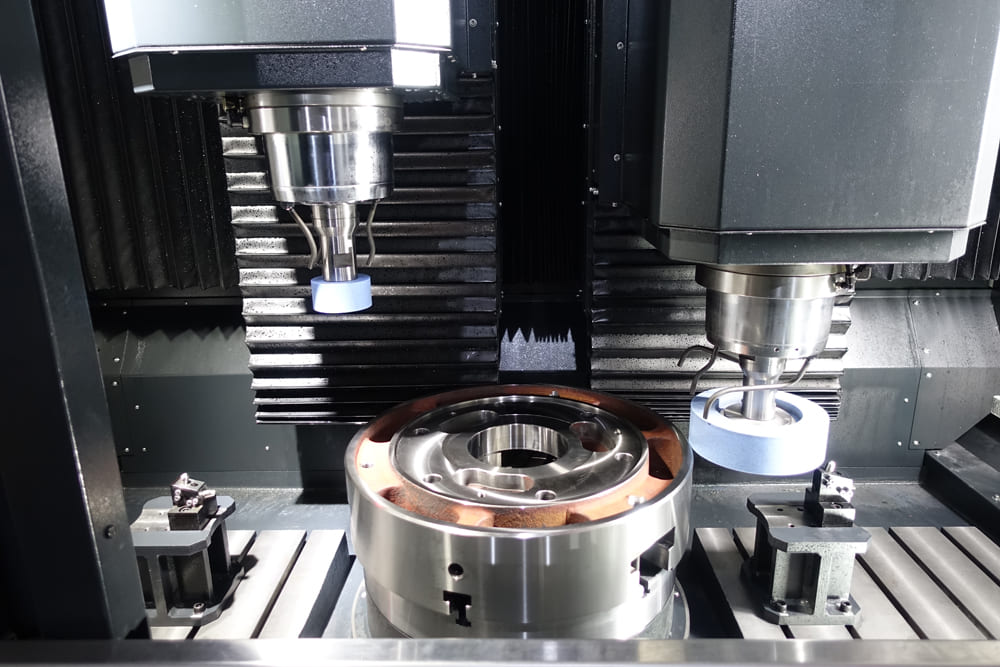

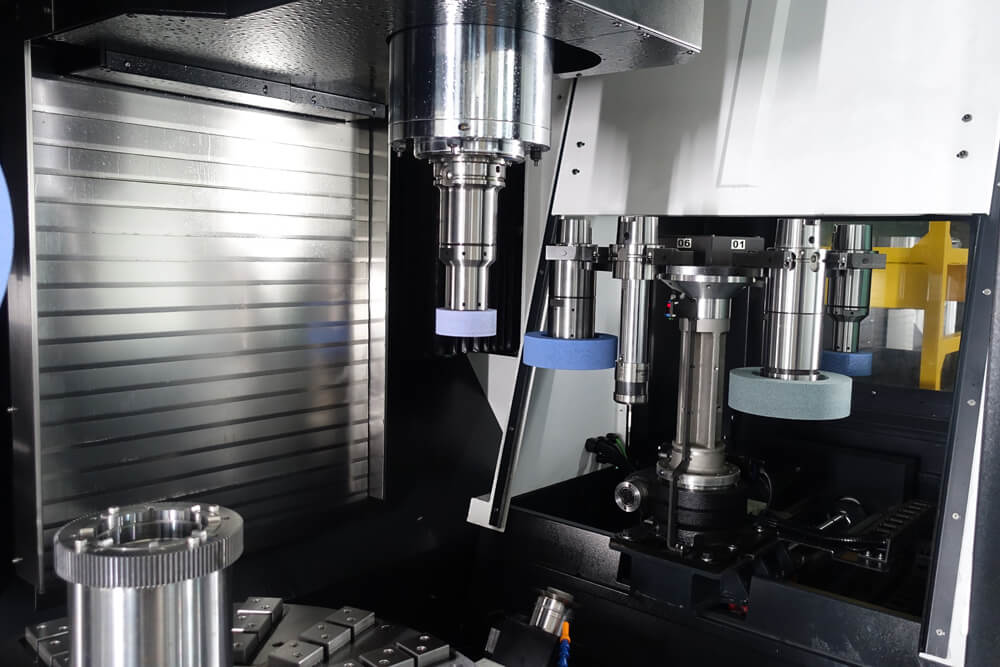

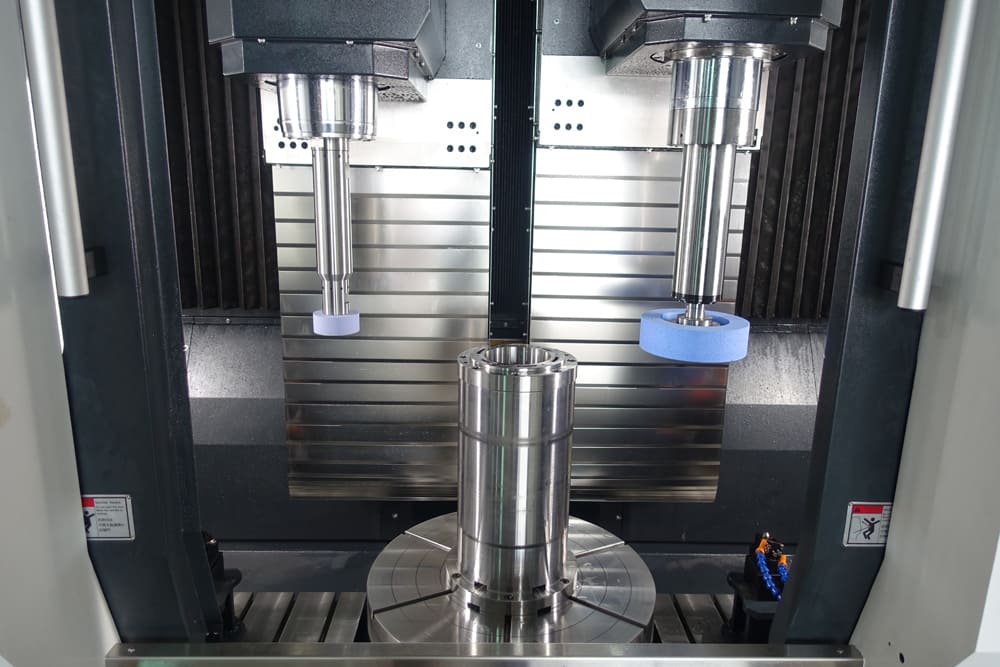

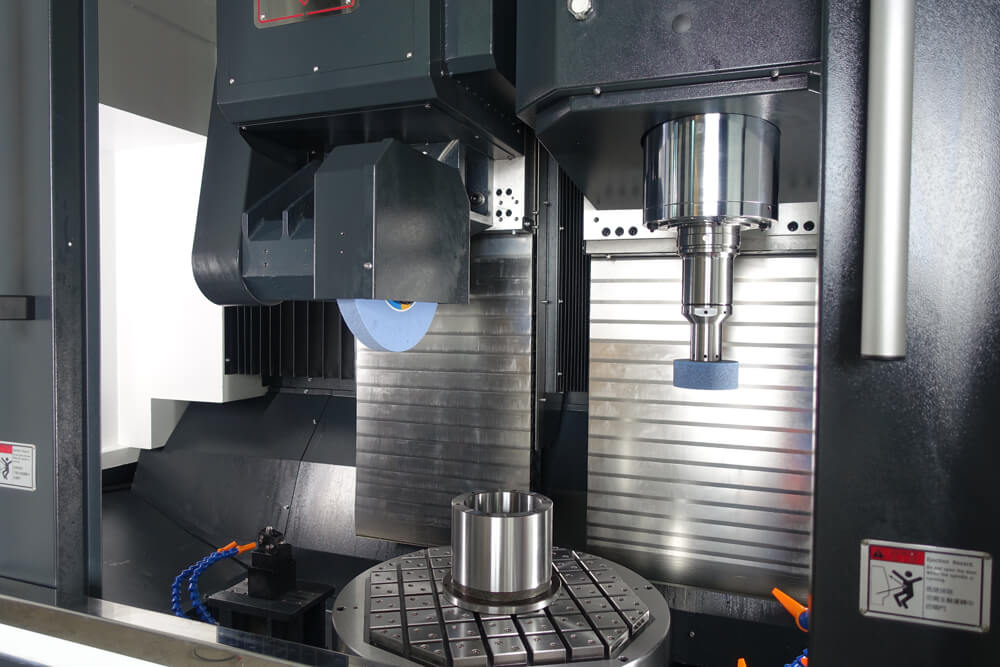

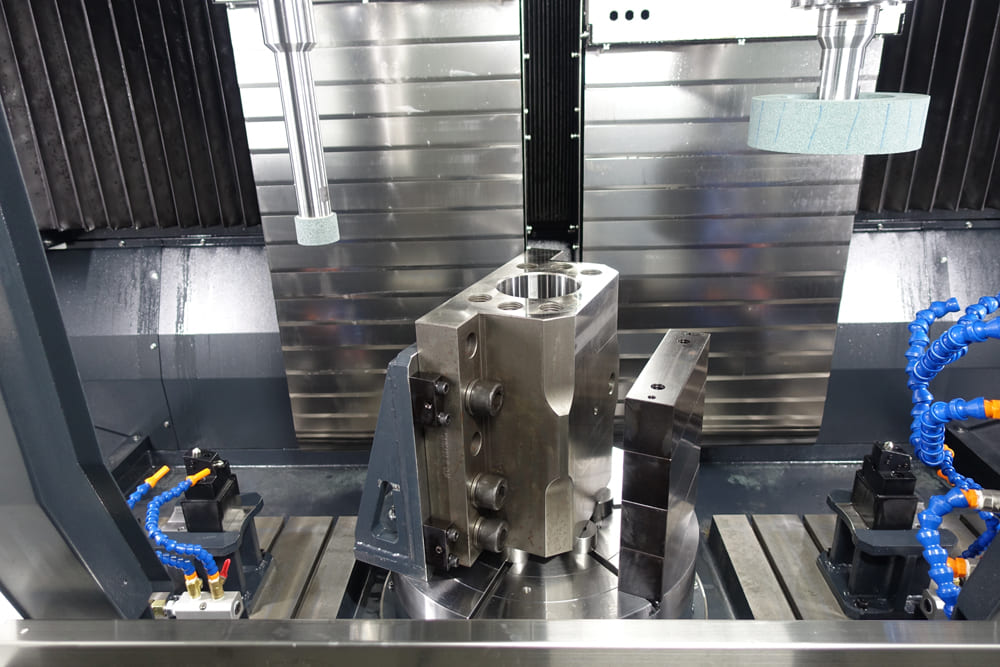

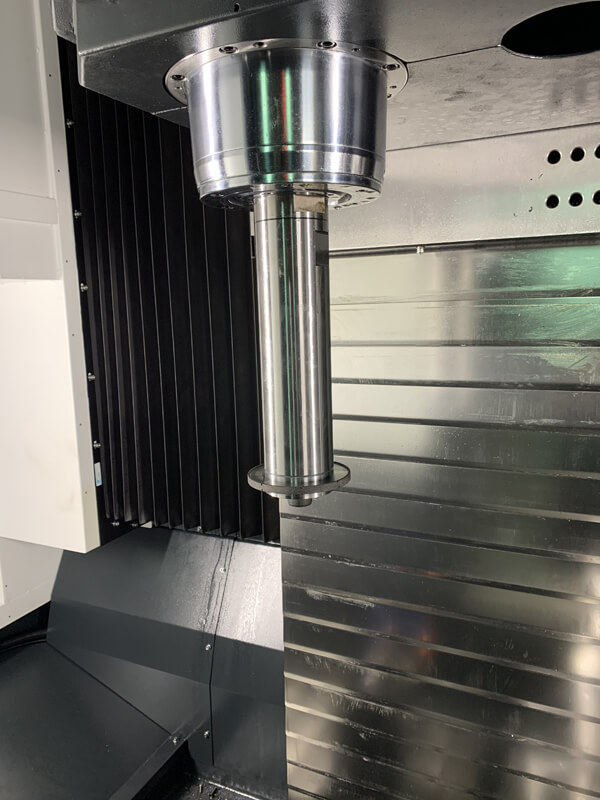

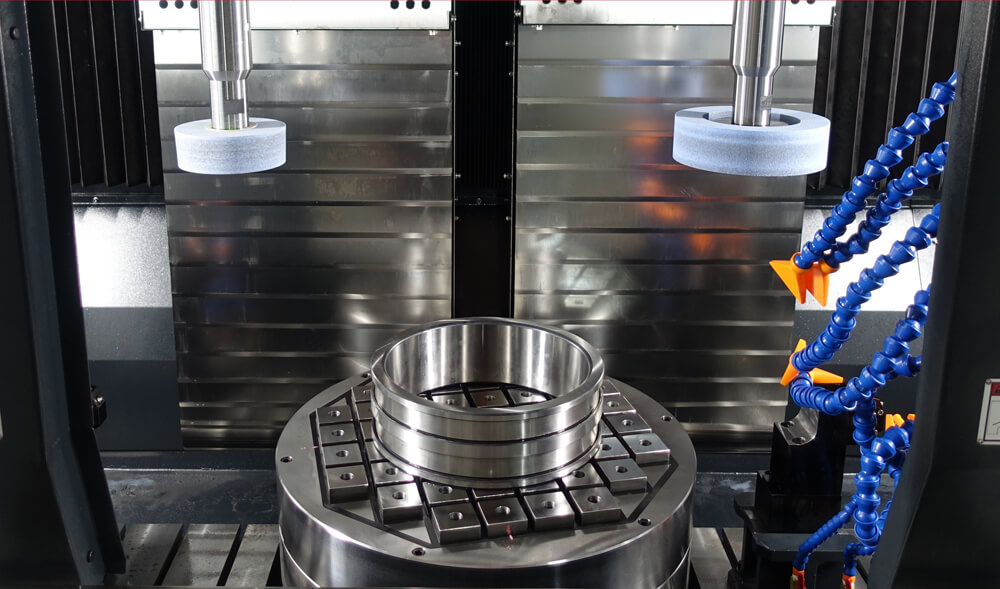

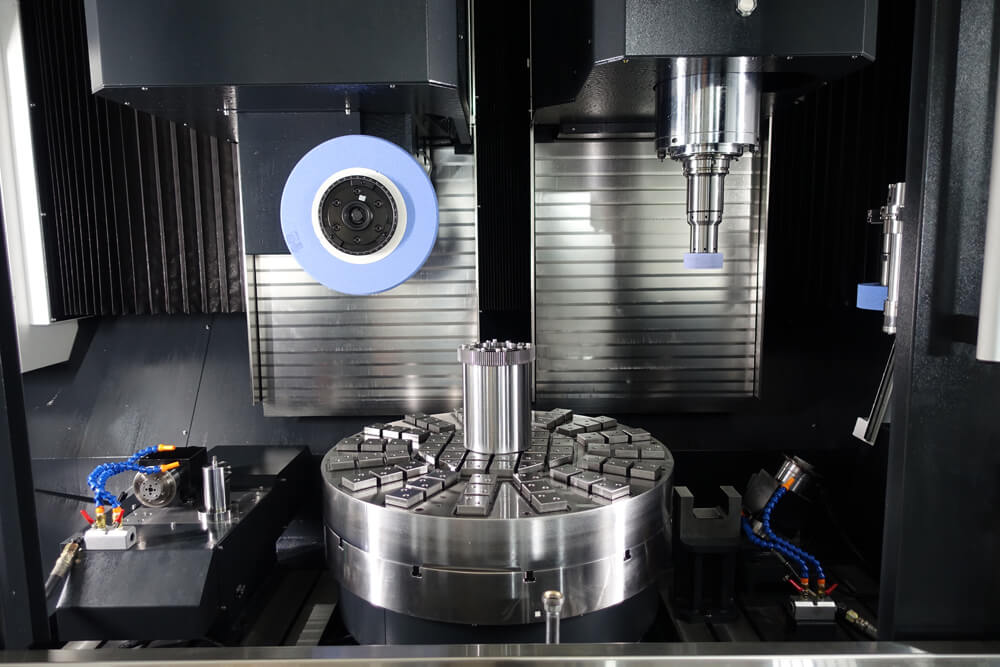

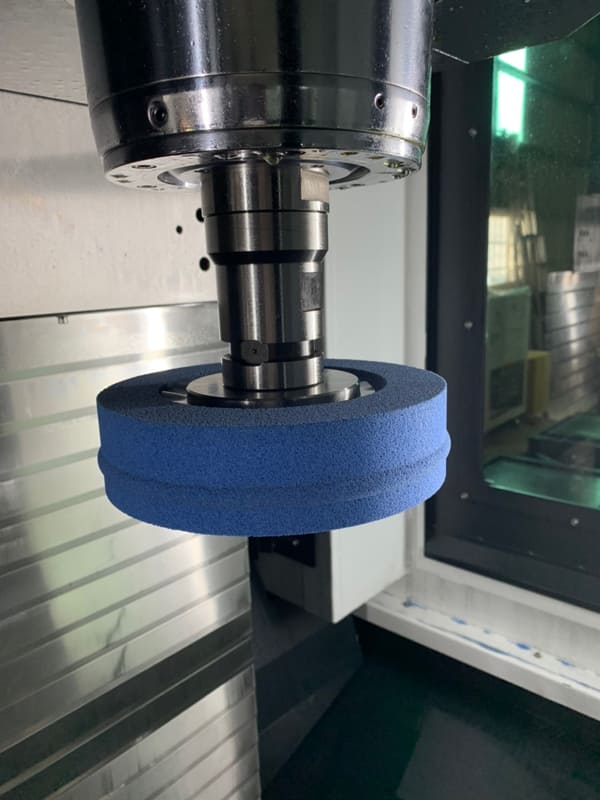

- Double-spindle models can carry grinding wheels for both high and low RPM.
Specification
| Item / Model | DN-500 | DN-600 | DN-800 | DN-1200 | DN-1600 |
|---|---|---|---|---|---|
| Machining Capacity | |||||
| Swing diameter- outside diameter that can be ground | Ø610 | Ø610 | Ø810 | Ø1210 | Ø1610 |
| Mechanical opening height (mm) (*Note2) | 950 | 950 | 950 | 1050 | 1050 |
| Length of the outside diameter that can be ground (mm) | 400 | 400 | 400 | 550 | 550 |
| Length of the inside diameter that can be ground (mm) | 350 | 350 | 350 | 400 | 400 |
| Grinding Wheel Spindle | |||||
| Type of tool holder (*Note3) | HSK-A63/A100 | HSK-A63/A100 | HSK-A100 | HSK-A100 | HSK-A100 |
| Power(kw) | 18/20 | 18/20 | 20 | 20 | 20 |
| Max. speed (rpm) | 2500~15000 | 2500~15000 | 2500~10000 | 2500~10000 | 2500~10000 |
| Diameter of grinding wheel (mm) | Ø40~ Ø255 | Ø40~ Ø255 | Ø50~ Ø255 | Ø50~ Ø305 | Ø50~ Ø305 |
| Work Table | |||||

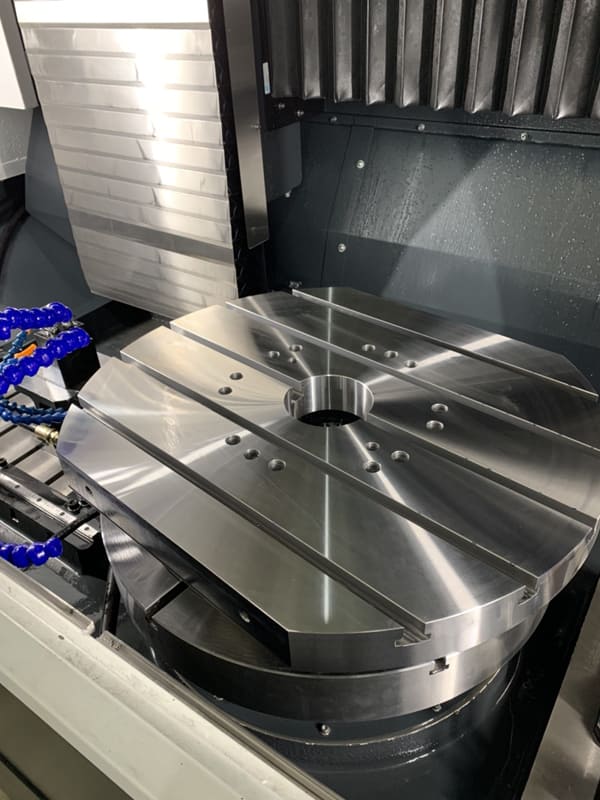

| Diameter of turntable (mm) | Ø500 | Ø600 | Ø800 | Ø1200 | Ø1600 |
| Revolution of worktable (rpm) | 300 | 250 | 200 | 100 | 80 |
| Max. load on table (KG) | 500/600 | 500/600 | 800 | 5000 | 6000 |
| X-axis | |||||
| Travel (mm) | 1200 | 1200 | 1400 | 1800 | 2200 |
| Min. unit of measurement (mm) | Ø0.0001mm | Ø0.0001mm | Ø0.0001mm | Ø0.0001mm | Ø0.0001mm |
| Optical scale | Yes | Yes | Yes | Yes | Yes |
| Z-axis | |||||
| Travel (mm) | 800 | 800 | 800 | 900 | 900 |
| Min. unit of measurement (mm) | 0.0001mm | 0.0001mm | 0.0001mm | 0.0001mm | 0.0001mm |
| Optical scale | Yes | Yes | Yes | Yes | Yes |
| NC | |||||
| FANUC/SIEMENS | 0i-TF(+)/828D | 0i-TF(+)/828D | 0i-TF(+)/828D | 0i-TF(+)/828D | 0i-TF(+)/828D |
| Drive | Screw + Servo Motor | Screw + Servo Motor | Screw + Servo Motor | Screw + Servo Motor | Screw + Servo Motor |
| Turret | |||||
| Turret | HSK-A63-6T HSK-A100-6T | HSK-A63-6T HSK-A100-6T | HSK100A-6T | HSK100A-6T | HSK100A-6T |
*Note: (1) The spindle type can be customized. (2) Mechanical opening height: Maximum distance from spindle nose to table. (3) Spindle RPM, Power, and Grinding Wheel Adaptor could be Customized.
Standard Accessories
- Oil mist reclaiming device
- Paper type filter
- Magnetic separator
- 3 x outer diameter handles

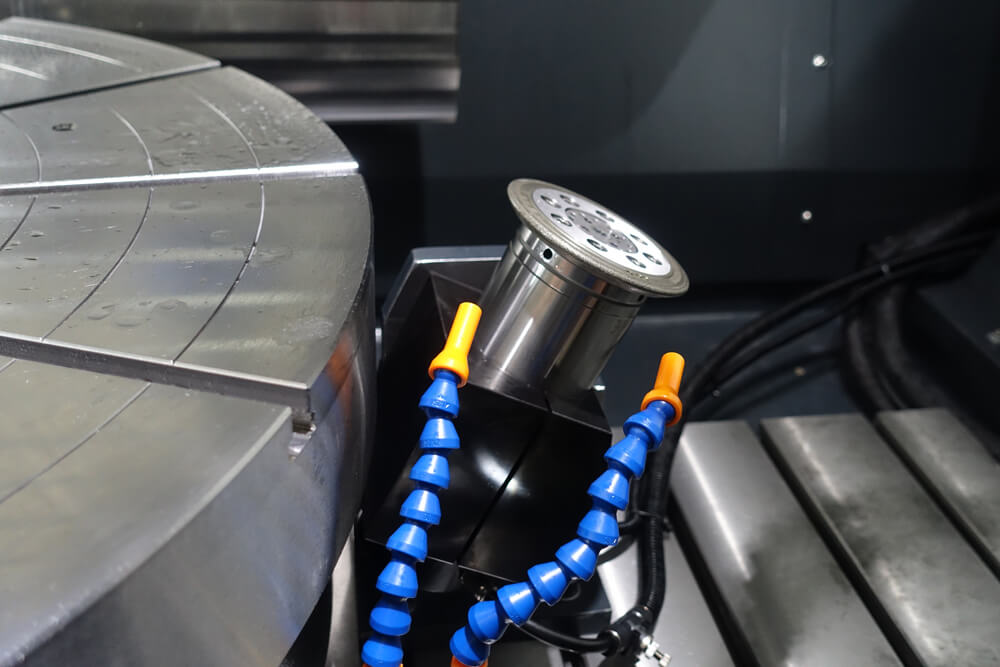

- Diamond dresser pens
- Table groove
- Tool box
Optional Accessories
- Online detection
- Automatic gate device

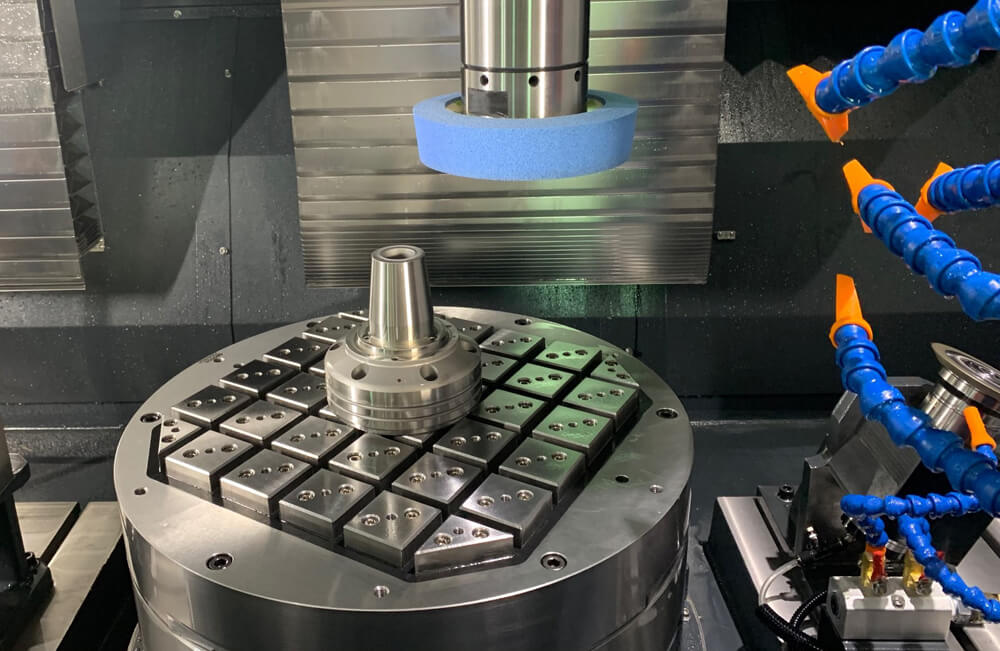

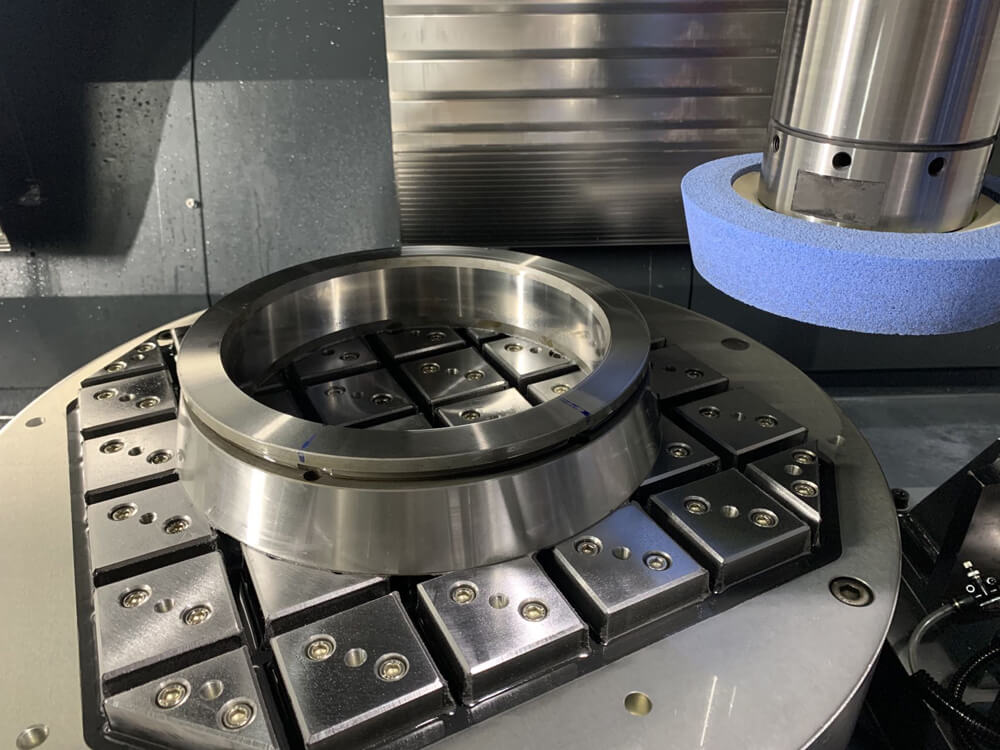

- Electromagnetic chuck

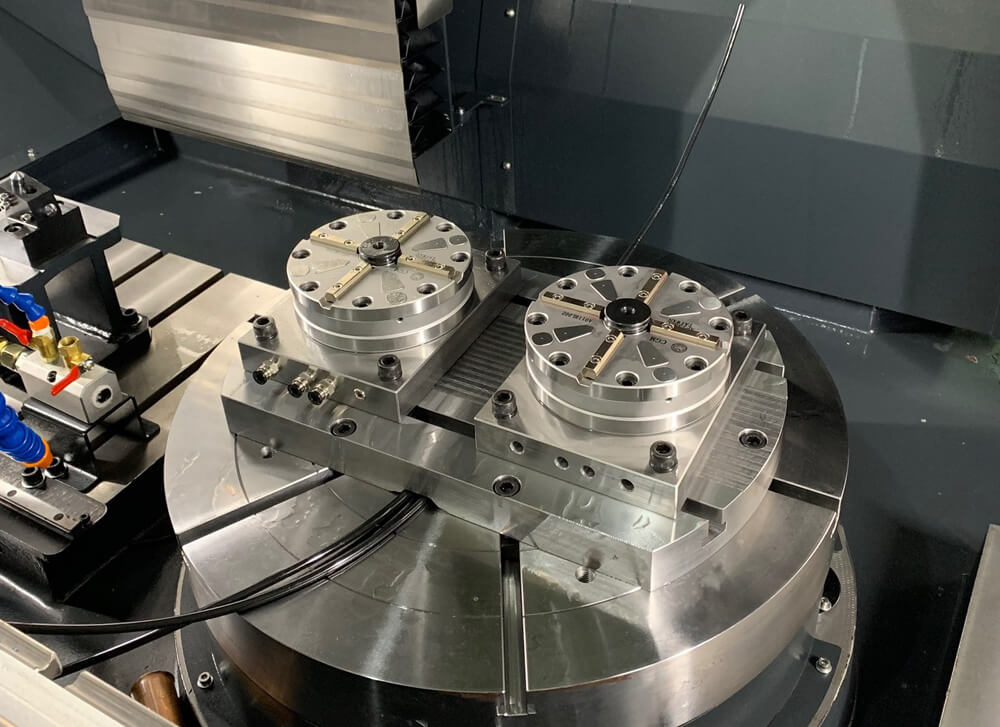

- Power Chucks
- Power diamond dresser
- Collision avoidance detection
- Spindle monitoring
Video

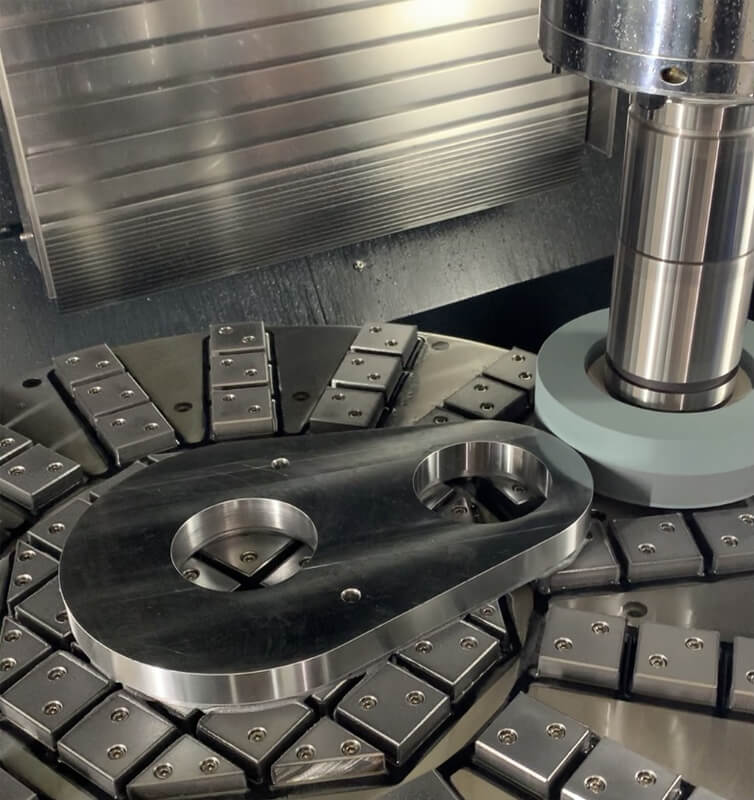

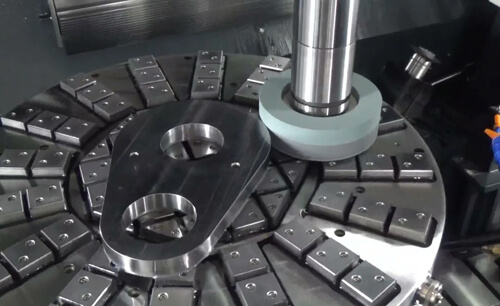

Cam Grinding

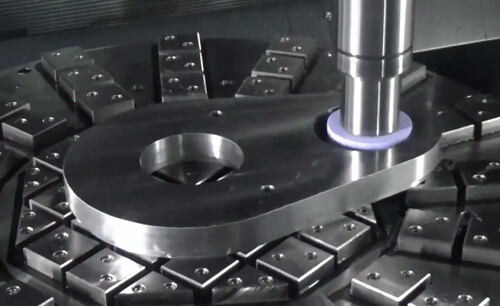

Eccentric Hole Grinding

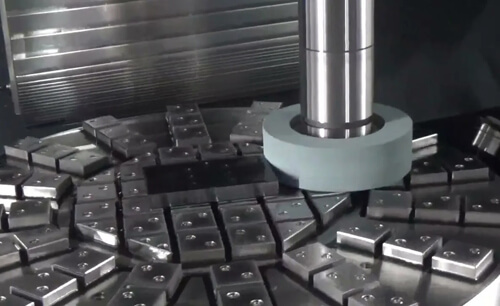

Four Angle Form Grinding

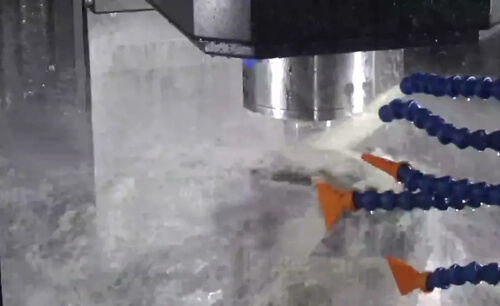

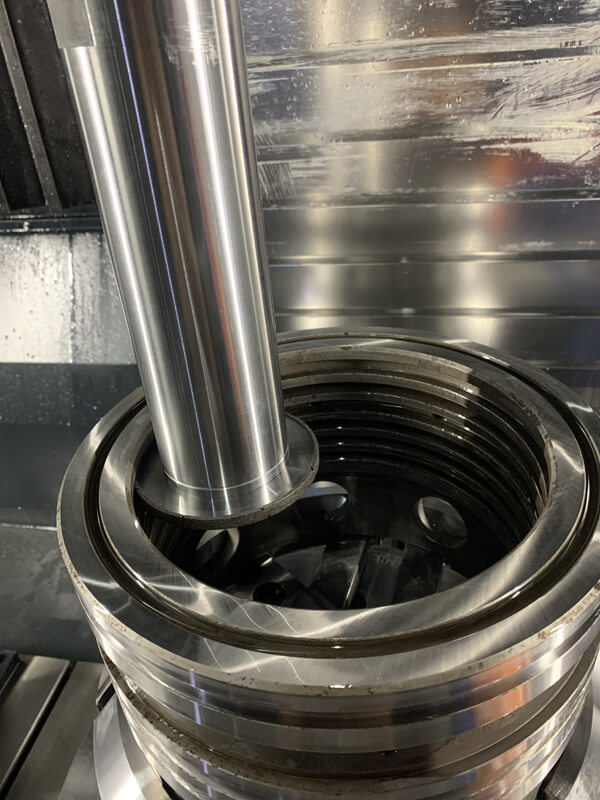

Slenderness Ratio ID Grinding

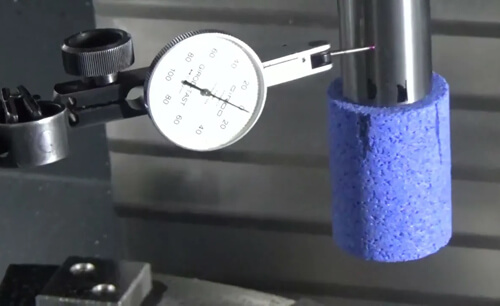

Slenderness Ratio ID Grinding — Shank Yaw

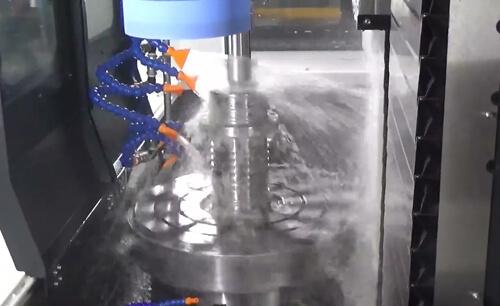

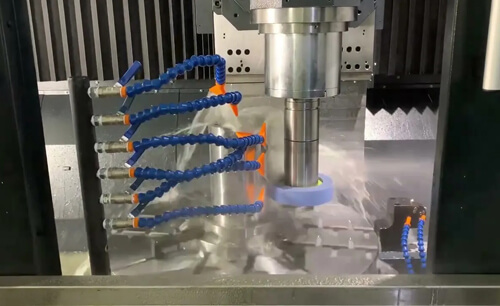

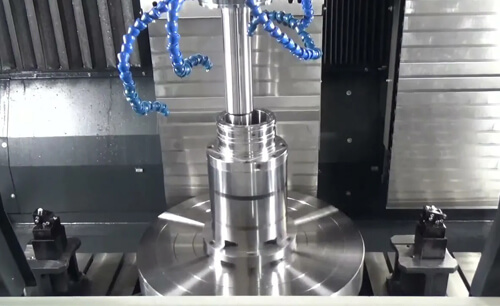

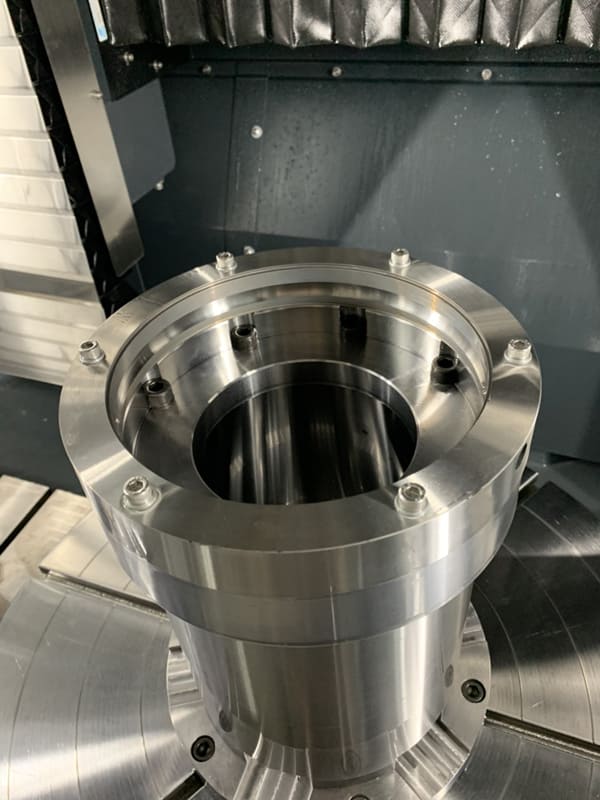

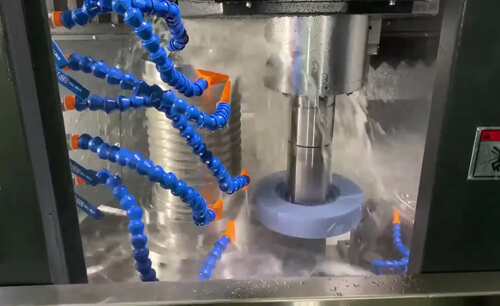

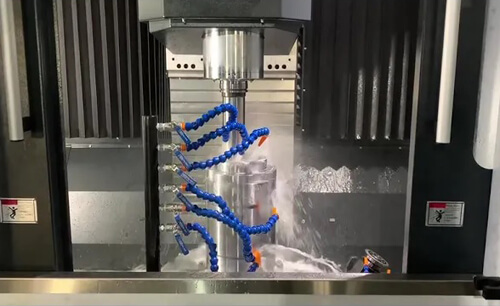

Spindle Sleeve Grinding
Spindle Sleeve Grinding
Spindle Sleeve Grinding
Spindle Sleeve Grinding
Spindle Sleeve Grinding

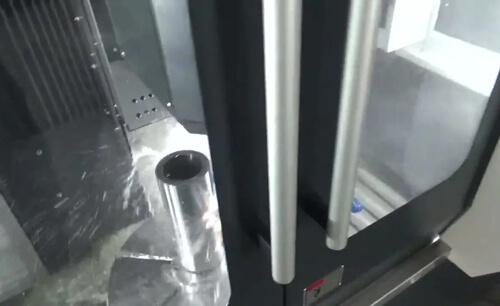

Standard Bat Grinding

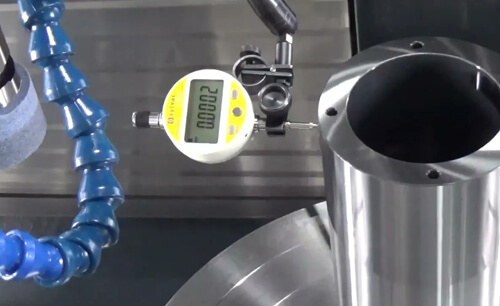

Standard Bat Real Time Inspection

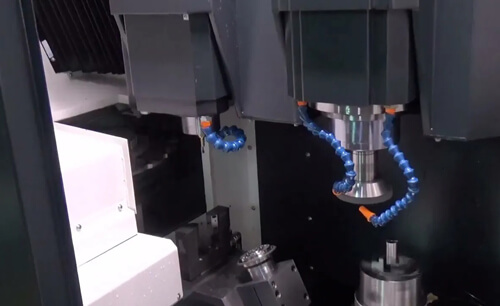

Small Hole Grinding

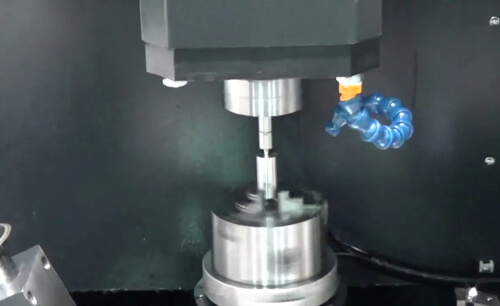

Tungsten Grinding

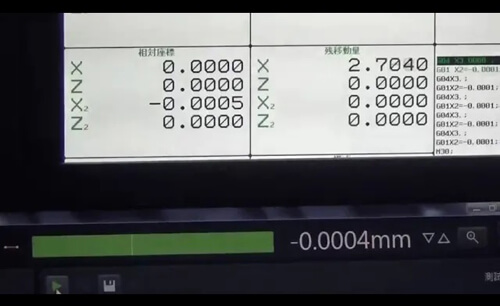

Micro Feeding

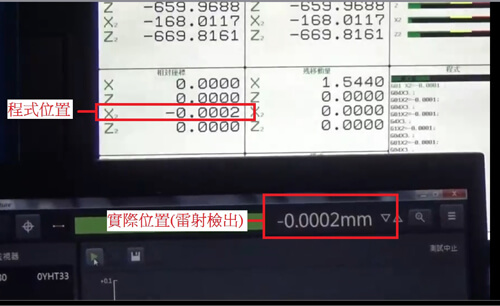

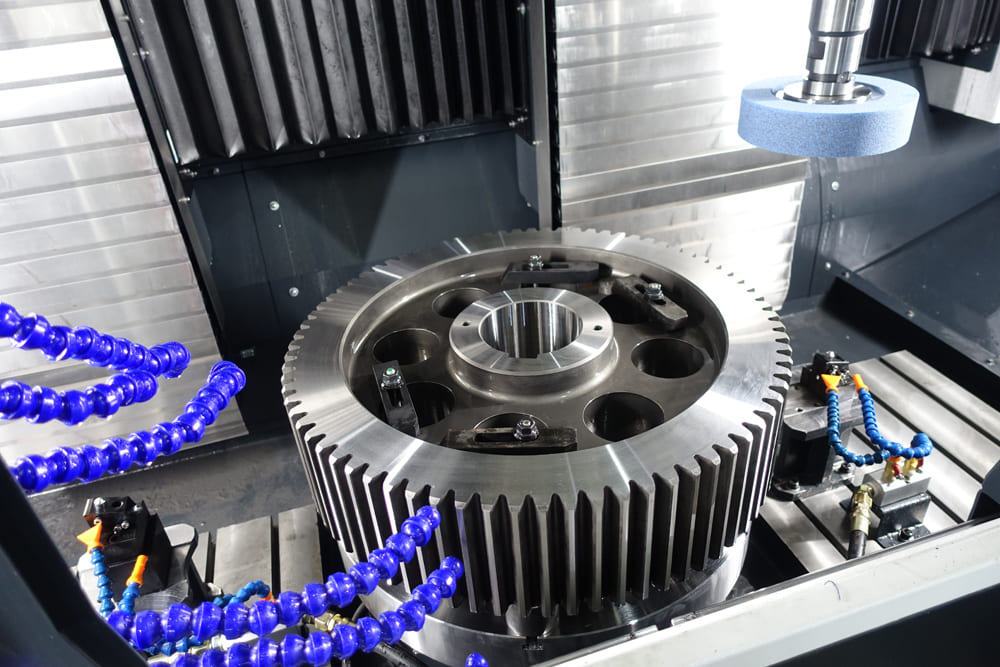

Gear ID Grinding

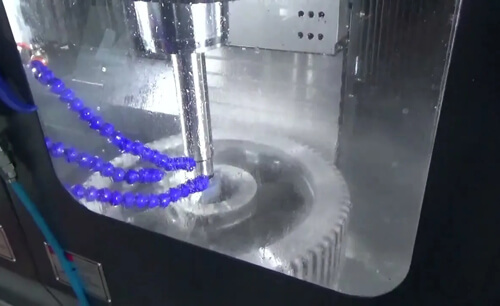

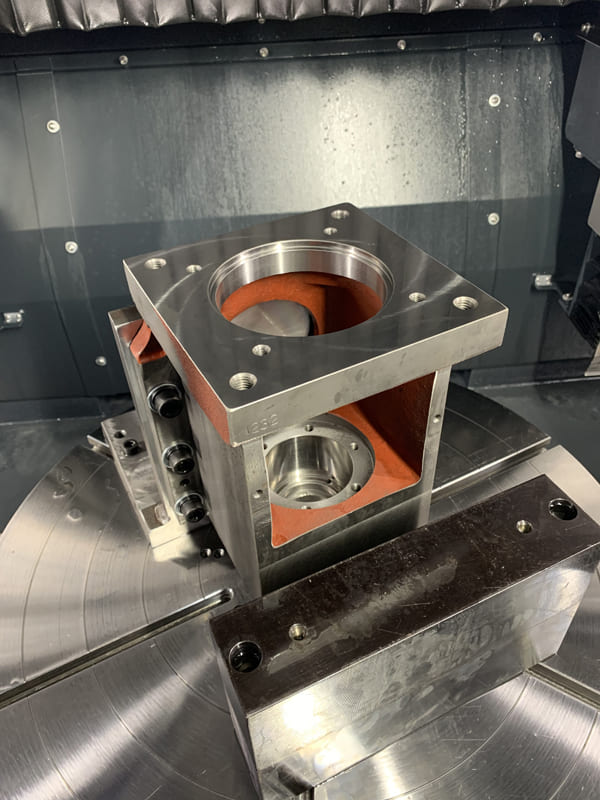

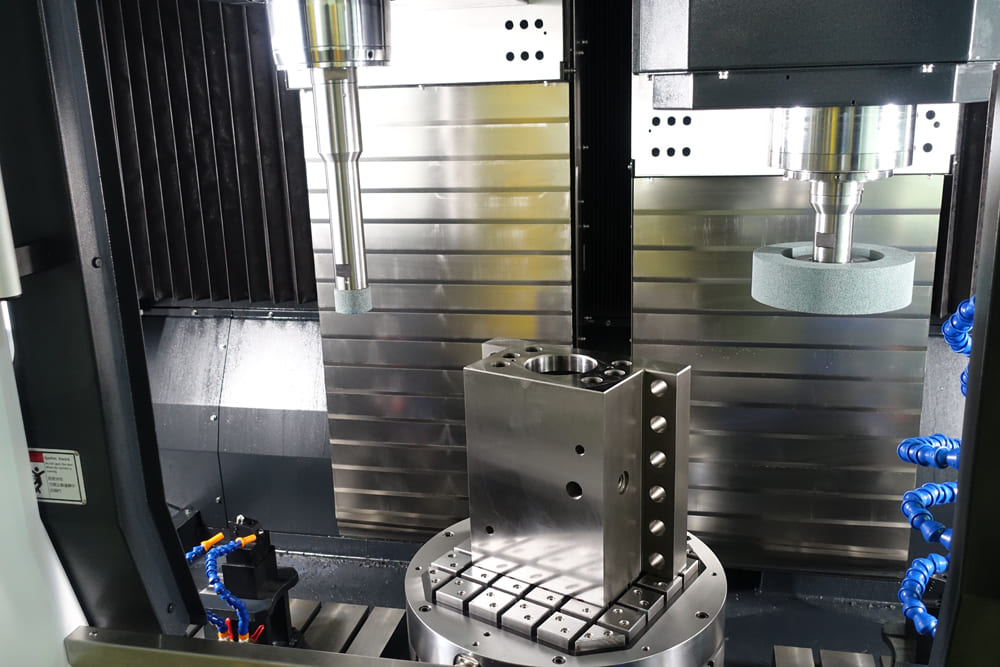

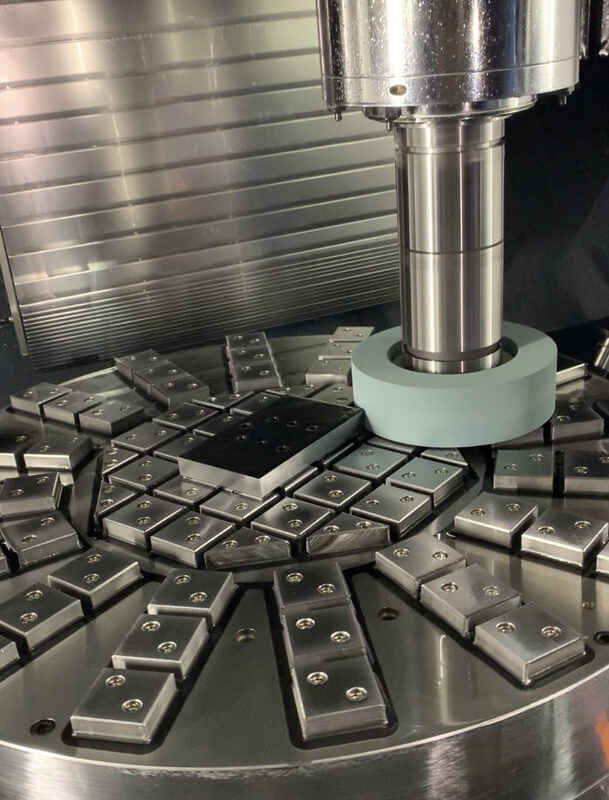

Grinding of Square Work Pieces

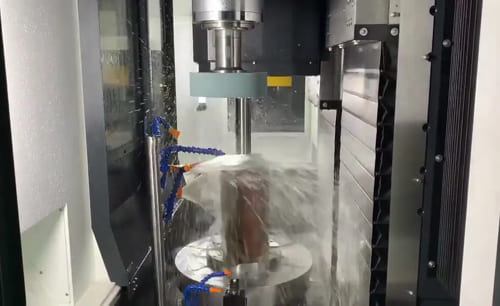

Deep Hole Grinding

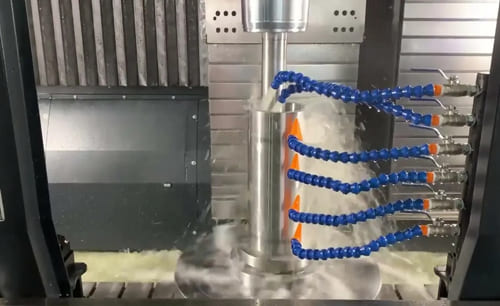

Boring & Grinding

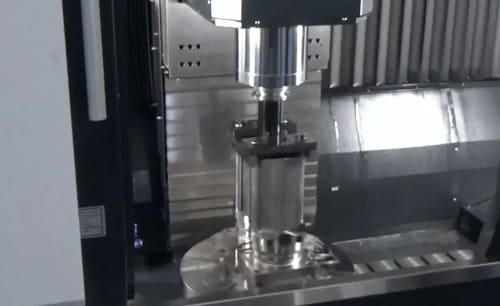

Upper Surface Grinding of Circumference

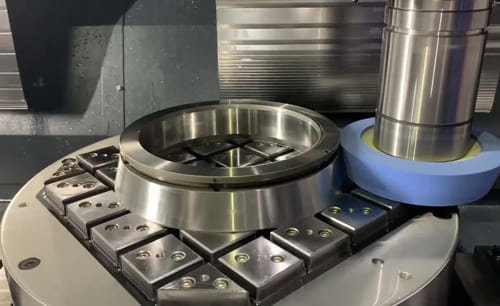

Work Piece Angle Inspection

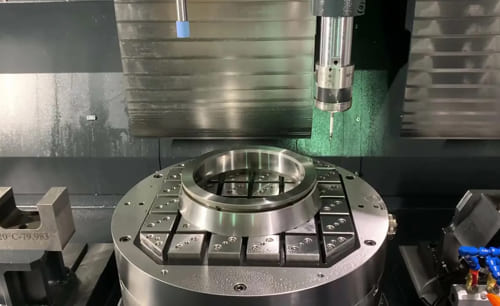

Work Piece Inspection

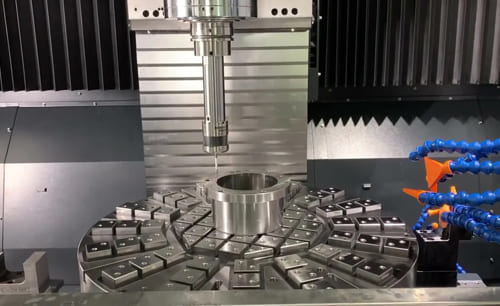

Tool Changing

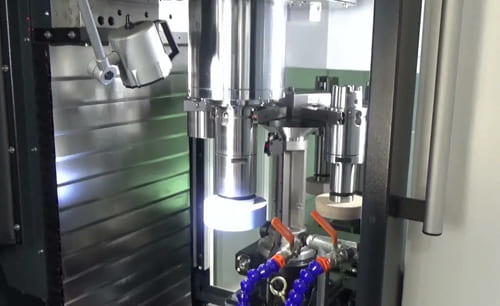

Testing Probe Changing

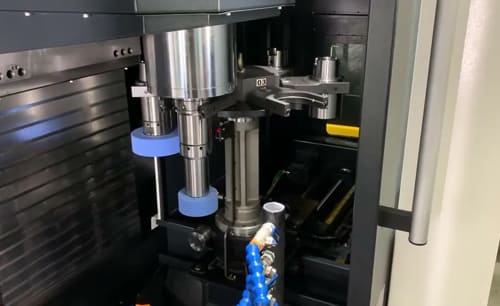

ID Pulsating Inspection After Grinding

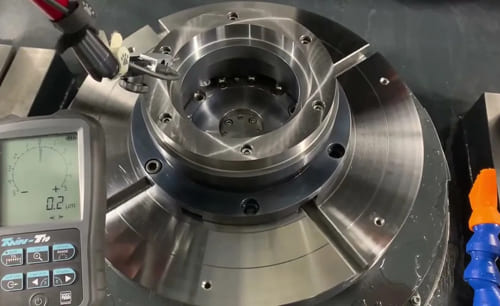

Surface Pulsating Inspection After Grinding

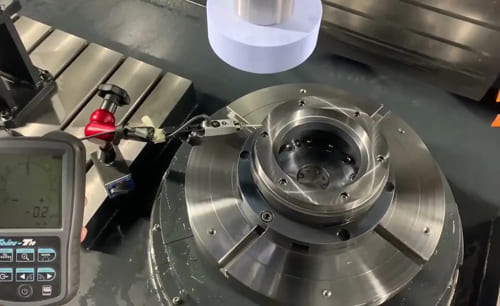

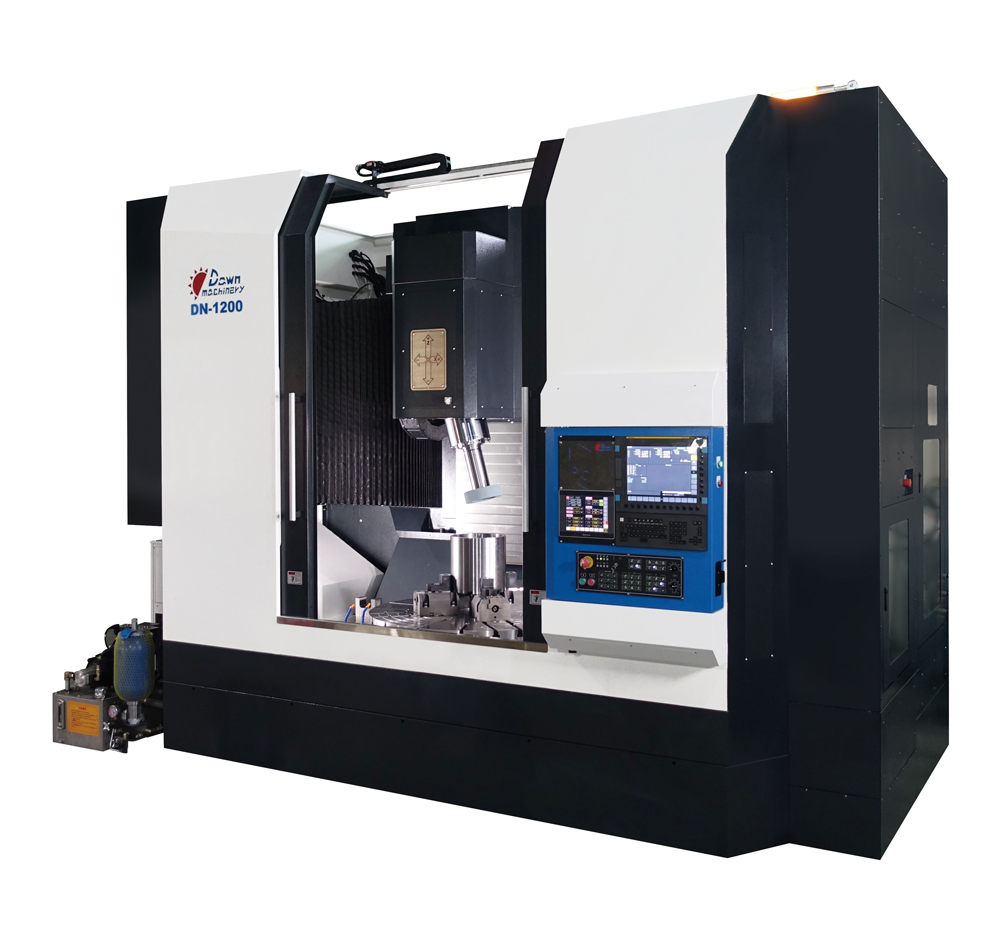

DN-1200 Grinding

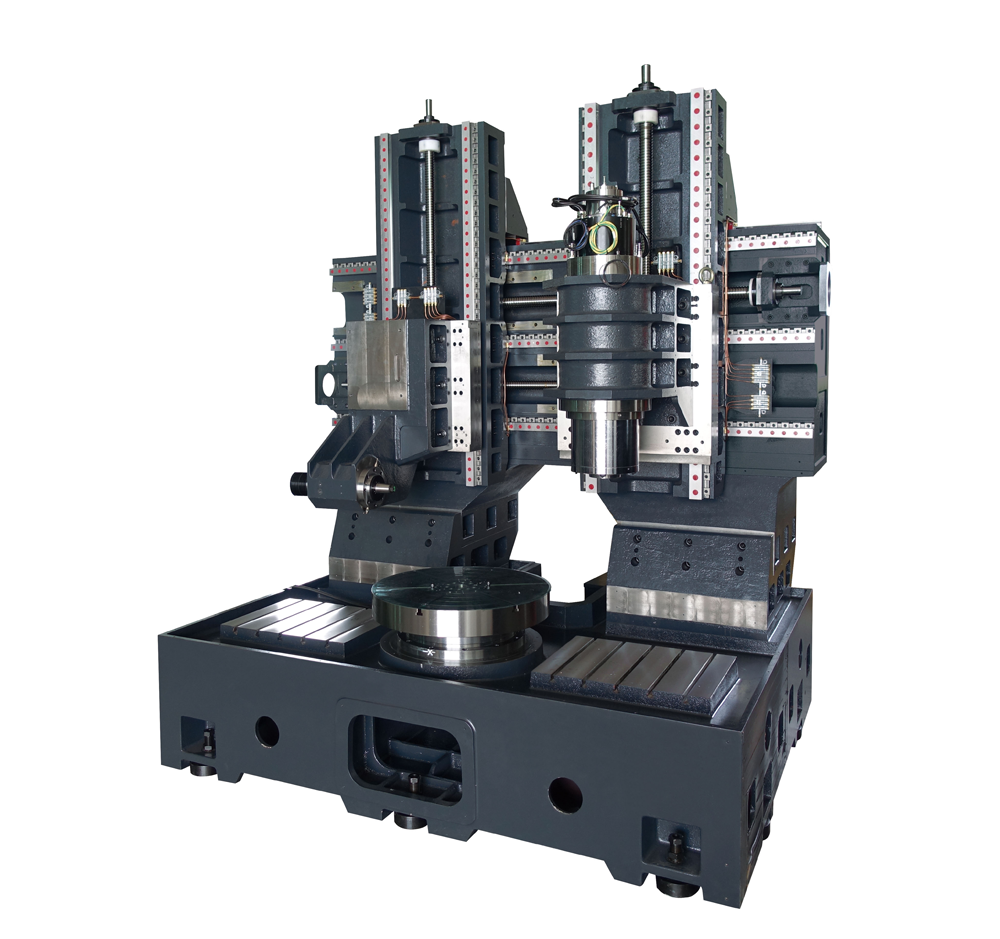

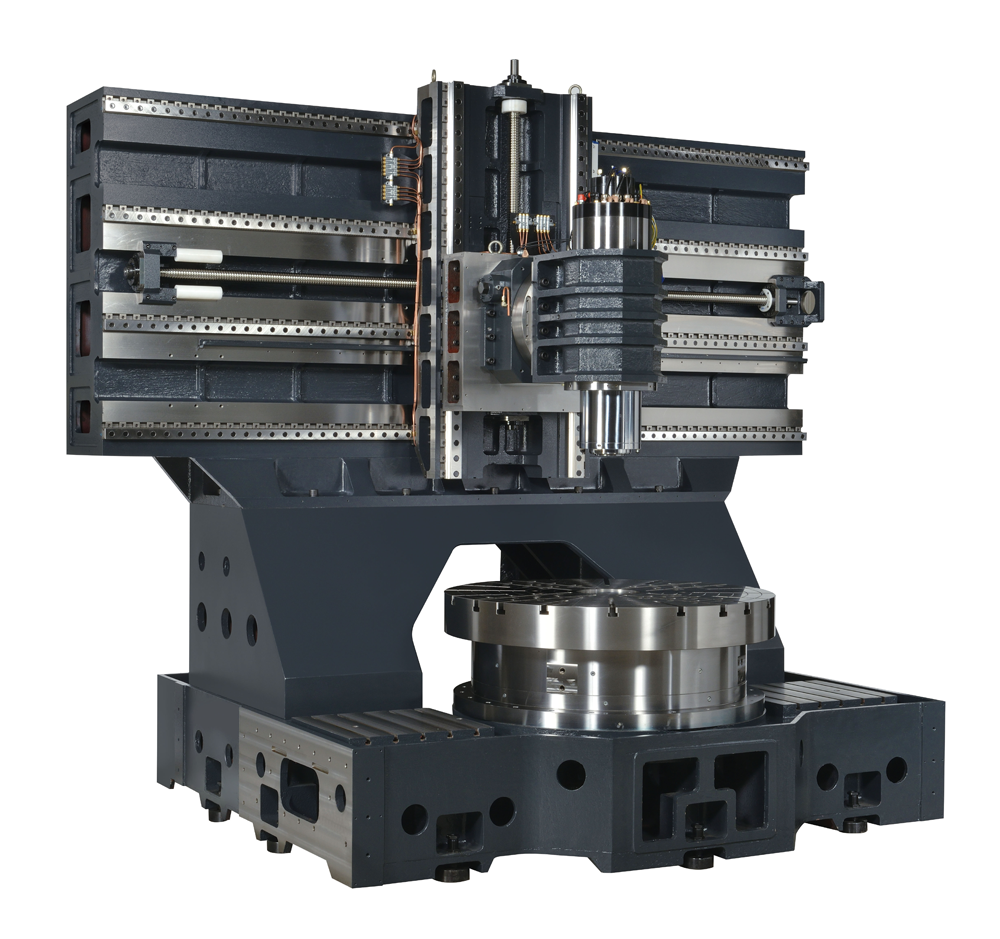

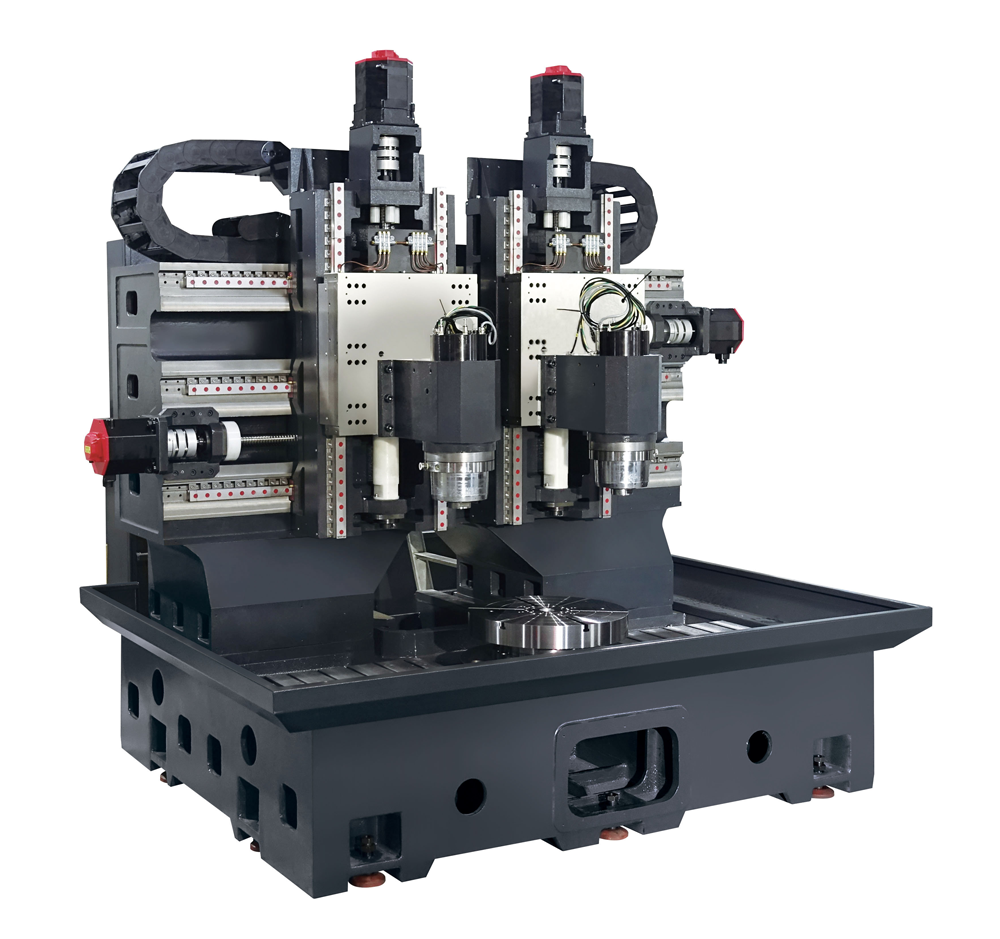

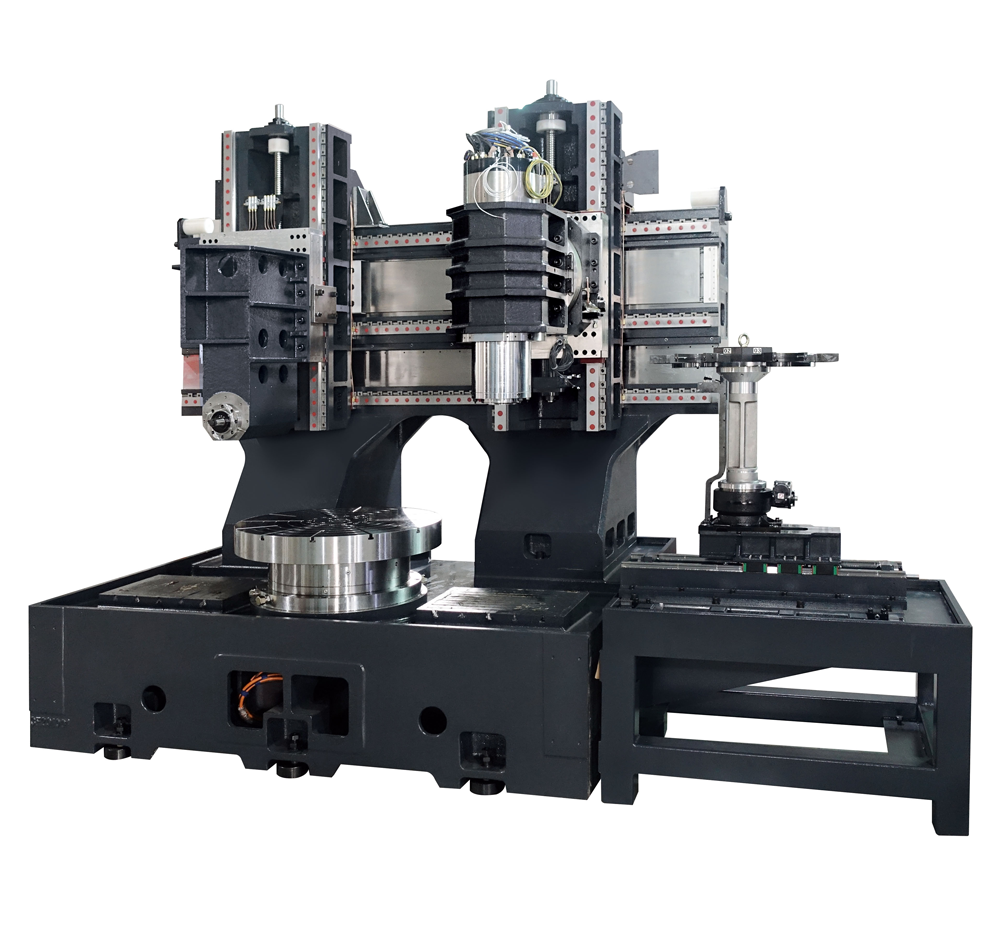

Structure of Machine
