Roller Cam Worm Milling/Grinding

Model | DN-Series

Suitable for grinding inside and outside diameters as well as end surfaces of heavy or non-circular work pieces.

Inquiry Product

PDF Download

Product Features

Suitable for grinding inside and outside diameters as well as end surfaces of heavy or non-circular work pieces.

Heavier work pieces can be loaded more easily by overhead hoist.

Double-column structure provides better machine stiffness.

Fully enclosed covers and an oil-mist reclaiming device prevent leakage of grinding oil and mist.

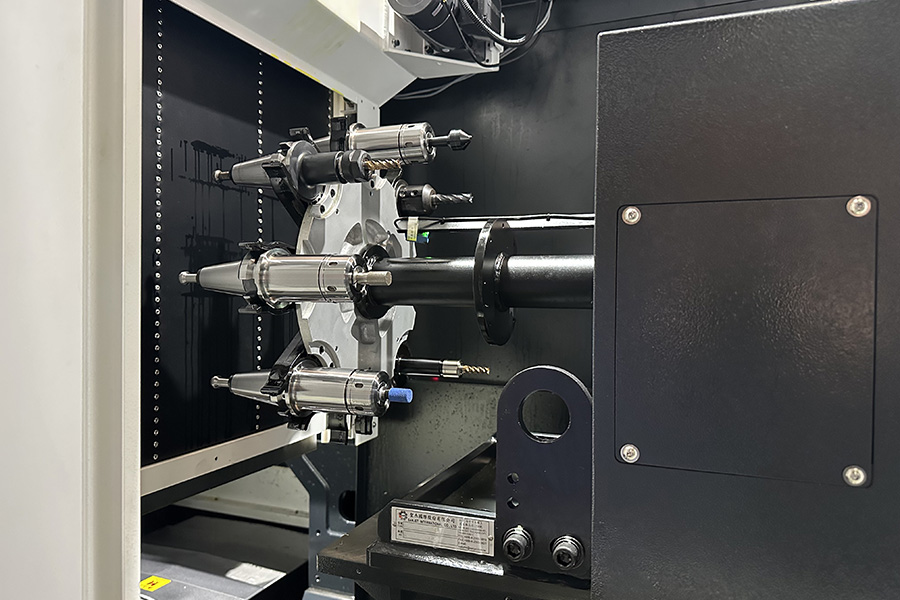

Options of single- or double-spindle, with or without tool changer.

Fanuc controller plus a 10" man-machine touch panel.

Conversational programming makes control operation and program creation easier.

Double-spindle models can carry grinding wheels for both high and low RPM.

+ More Videos

Specifications

結構概述 Structure	單主軸+砂輪庫 Single Spindle with ATC	單主軸不帶砂輪庫 Single Spindle without ATC	雙立主軸不帶砂輪庫 Dual Vertical Spindle without ATC	一立一臥主軸不帶砂輪庫 One Vertical Spindle One Horizontal Spindle without ATC	一立一臥主軸+砂輪庫 One Vertical Spindle One Horizontal Spindle ATC
型號 Model	DN-300/DN-500/ DN-600/DN-800/ DN-1200/DN-1600/ DN-2000	DN-301/DN-501/ DN-601/DN-801/ DN-1201/DN-1601/ DN-2001	DN-202/DN-302/DN-502/ DN-602/DN-802/ DN-1202/DN-1602/ DN-2002	DN-306F/DN-506F/ DN-606F/DN-806F/ DN-1206F/DN-1606F/ DN-2006F	DN-308F/DN-508F/ DN-608F/DN-80F8/ DN-1208F/DN-1608F/ DN-2008F

項目 Item	系列 series	200	300	500	600	800	1200	1600	2000	2500

*註1：機械開口高度是指主軸鼻端至轉盤工作台最大距離。 *Remark 1: Opening height is the max distance from spindle nose to worktable.
