Horizontal CNC Internal

Model | DN-Series

Can be equipped with a hybrid (hydrostatic/hydrodynamic) spindle.

Inquiry Product

PDF Download

Product Features

Can be equipped with a hybrid (hydrostatic/hydrodynamic) spindle.

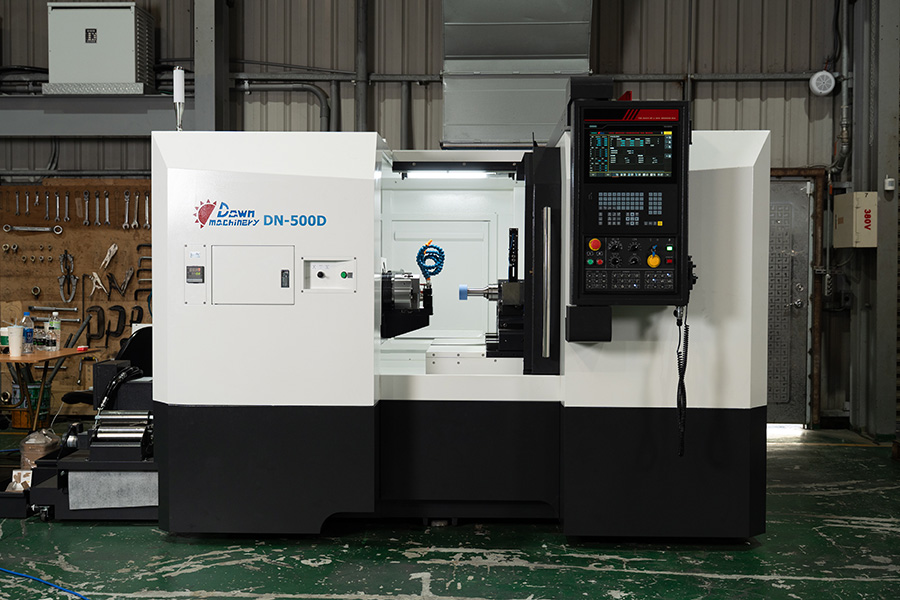

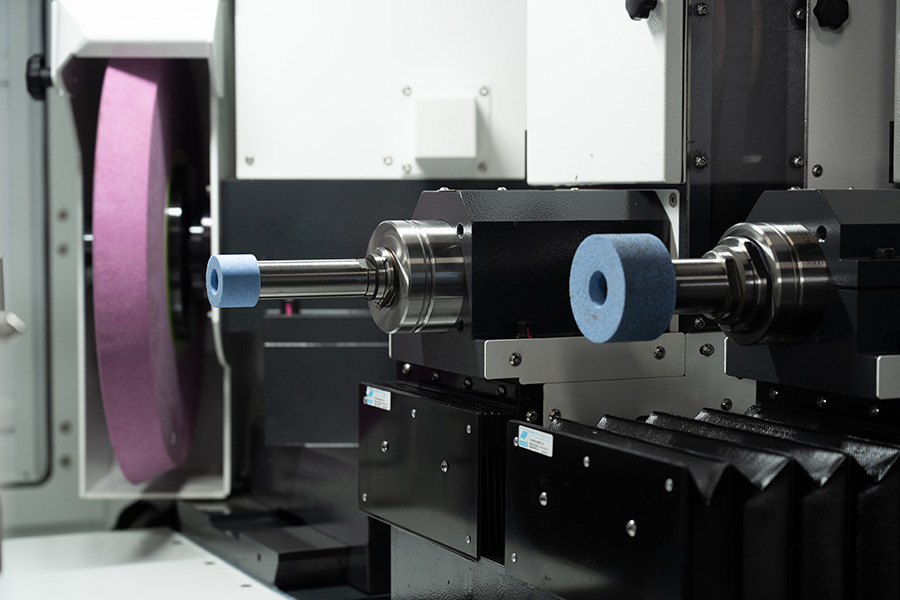

510mm grinding wheel, 7.5 kW variable-frequency drive.

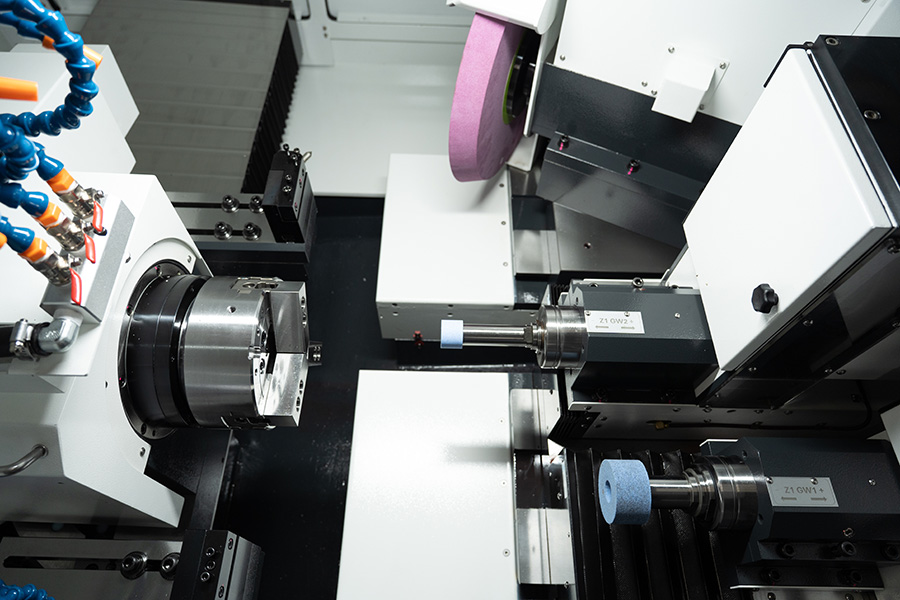

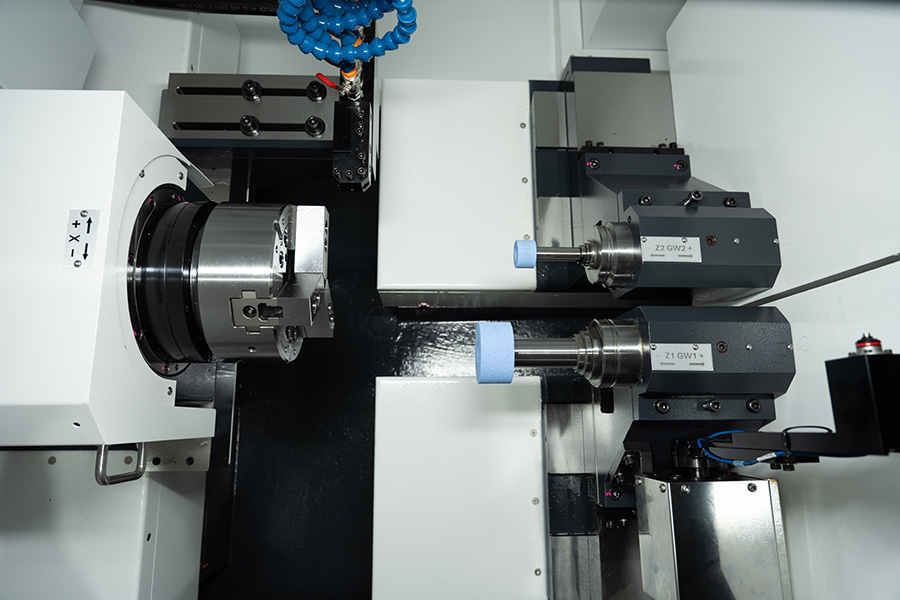

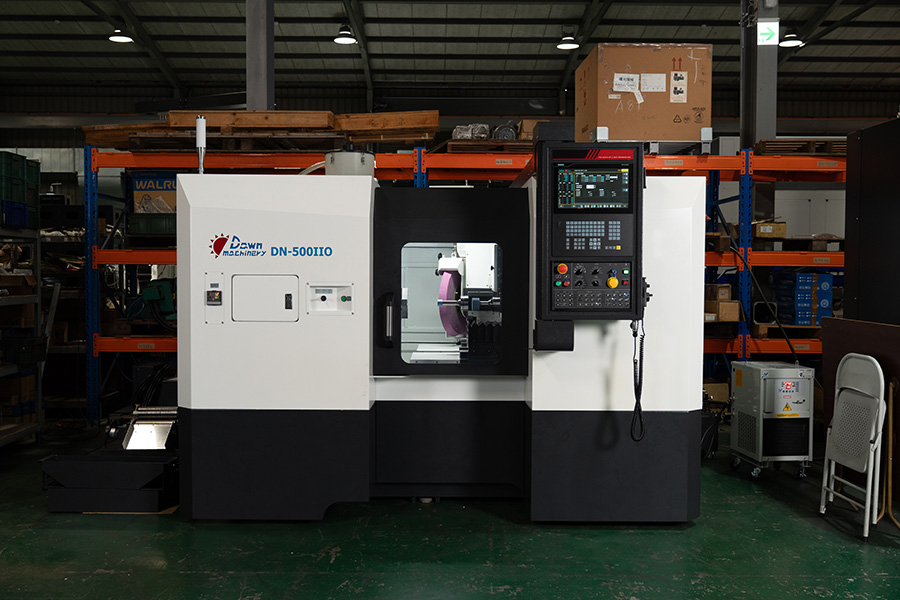

The DN-50011O features dual-spindle units (Z1/Z2) with dual telescopic slide tables that can operate independently; optional configurations include a turning tool unit or a built-in high-speed spindle.

Equipped with an A2-6 high-rigidity workpiece spindle and a spindle servo motor, it enables X-C simultaneous grinding.

The innovative moving slide design significantly reduces interference issues during the grinding process.

The grinding wheel is driven by a belt.

The grinding spindle is driven to the positioning point by a hydraulic cylinder, after which its movement is controlled by a servo motor.

The grinding spindle speed can be freely selected within the range of 10,000 to 50,000 RPM.

The maximum outer diameter of the grinding wheel reaches 150 mm, significantly enhancing machining efficiency.

+ More Videos

Specifications

結構概述 Structure	單主軸+砂輪庫 Single Spindle with ATC	單主軸不帶砂輪庫 Single Spindle without ATC	雙立主軸不帶砂輪庫 Dual Vertical Spindle without ATC	一立一臥主軸不帶砂輪庫 One Vertical Spindle One Horizontal Spindle without ATC	一立一臥主軸+砂輪庫 One Vertical Spindle One Horizontal Spindle ATC
型號 Model	DN-300/DN-500/ DN-600/DN-800/ DN-1200/DN-1600/ DN-2000	DN-301/DN-501/ DN-601/DN-801/ DN-1201/DN-1601/ DN-2001	DN-202/DN-302/DN-502/ DN-602/DN-802/ DN-1202/DN-1602/ DN-2002	DN-306F/DN-506F/ DN-606F/DN-806F/ DN-1206F/DN-1606F/ DN-2006F	DN-308F/DN-508F/ DN-608F/DN-80F8/ DN-1208F/DN-1608F/ DN-2008F

項目 Item	系列 series	200	300	500	600	800	1200	1600	2000	2500

*註1：機械開口高度是指主軸鼻端至轉盤工作台最大距離。 *Remark 1: Opening height is the max distance from spindle nose to worktable.
